Kewtech KEWISO3 safe isolation kit with KT1795, proving unit and lock off

Key Benefits

• Required for correct safe isolation procedure
• KT1795 - Voltage indication even without batteries
• Ghost voltage clearance function
• Permanent UK Specific GS38 Slender probe tips NO NEED to swap ends
• Fits into recessed terminals such as RCBOs without unscrewing any caps
• IP64
• Designed to the new international safety standards IEC 61243-3 & IEC 61010-1
• KEWLOK - No need for separate lock and no keys required
• Durable carry bag with a shoulder strap and transparent window for the proving unit

Key Features

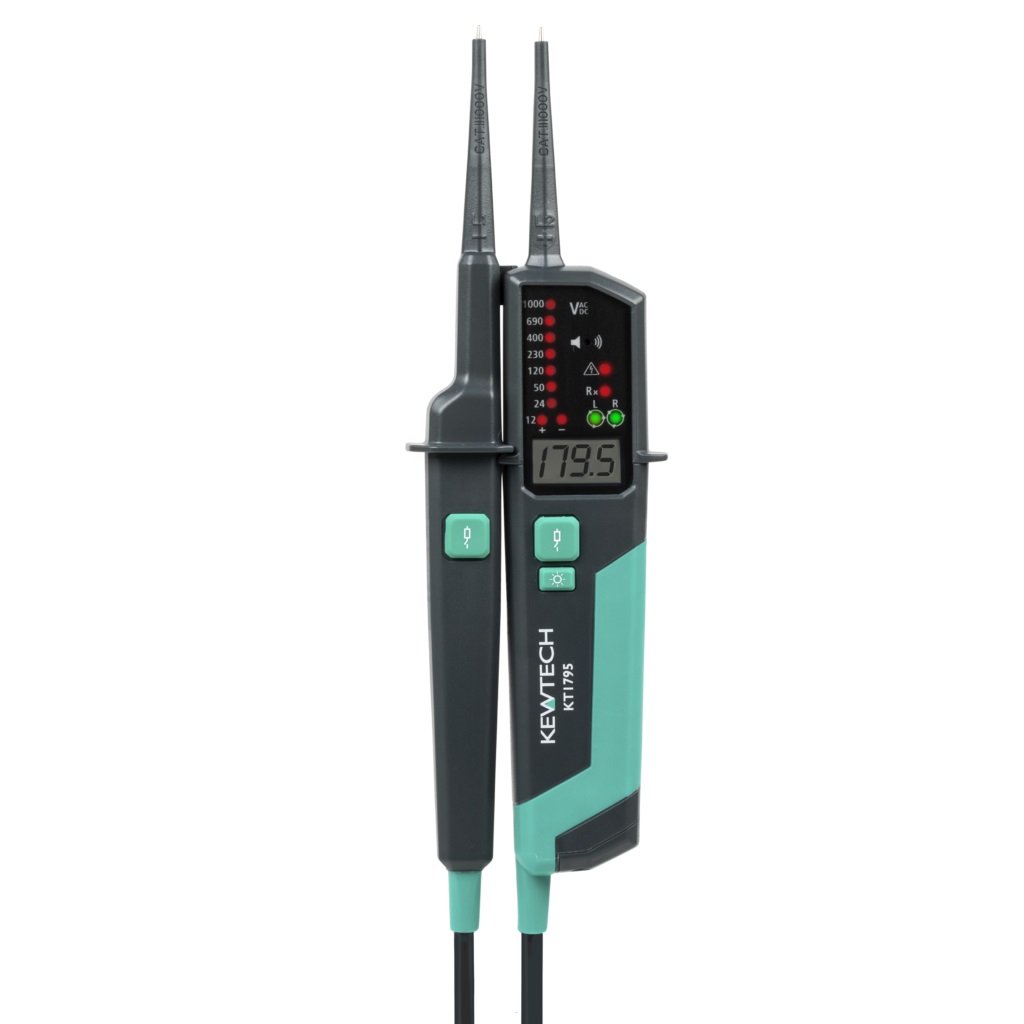

• KT1795 - Clear LEDs indicate voltage level
• Measures 6V - 1000V AC
• Measures 6V - 1500V DC
• Push buttons to increase the testing load to clear ghost voltages
• 1V LCD resolution indication
• Clear audible tone
• Bright torch light - gives ample illumination
• Phase Rotation - Bright green LEDs show left or right rotation
• Single pole voltage detection on both probes
• Continuity test
• Diode test
• Self diagnostic test
• Polarity indication
• Auto power on/off
• Data hold
• KEWLOK - One size fits most MCBs and toggle type main switches
• User selectable integral combination padlock
• Comes with two warning labels that can be secured to the shackle and give user information

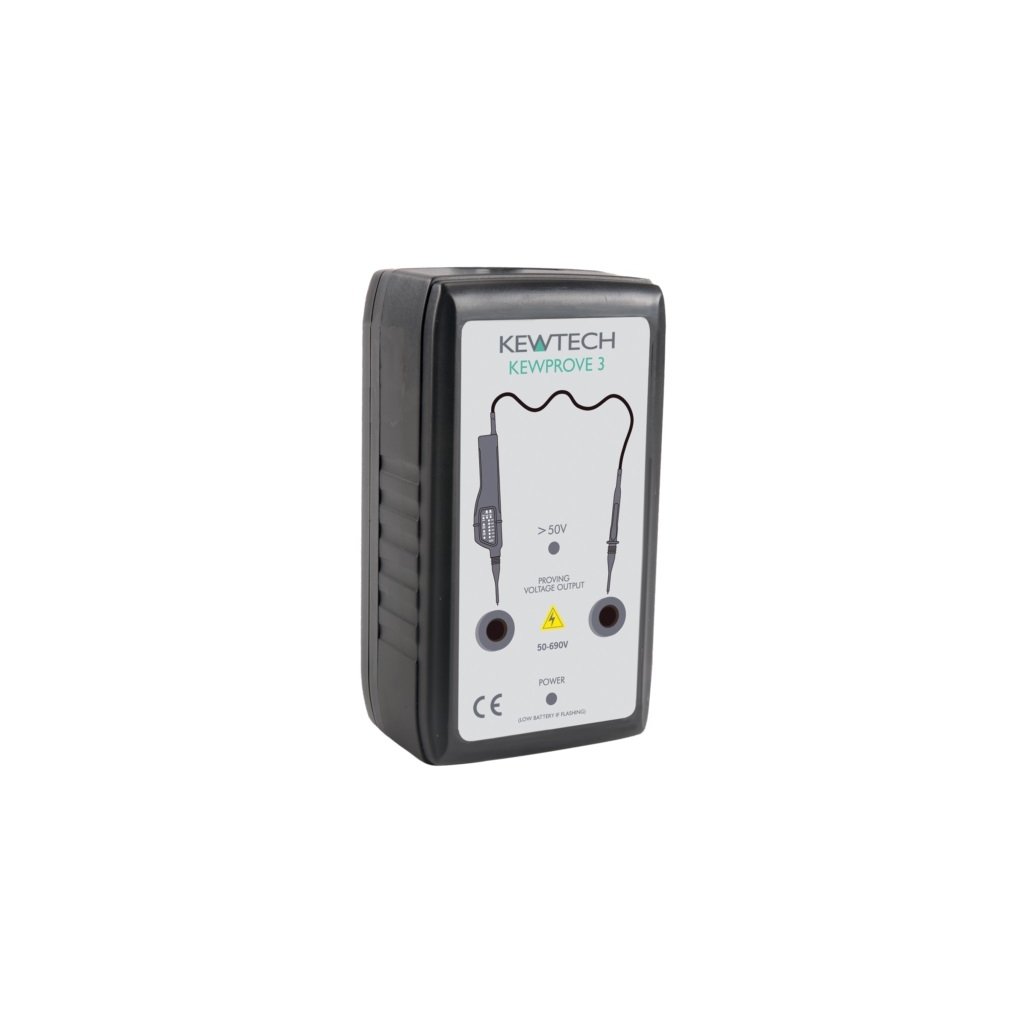

• KEWPROVE3 - High output will drive even the most high current voltage detector
• Instant ramp up and then step down will prove several voltage levels
