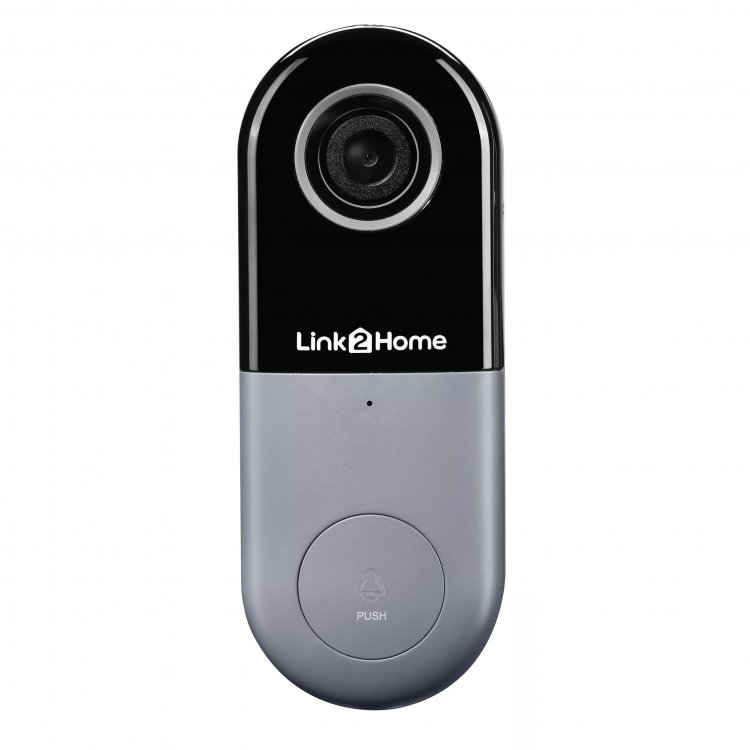

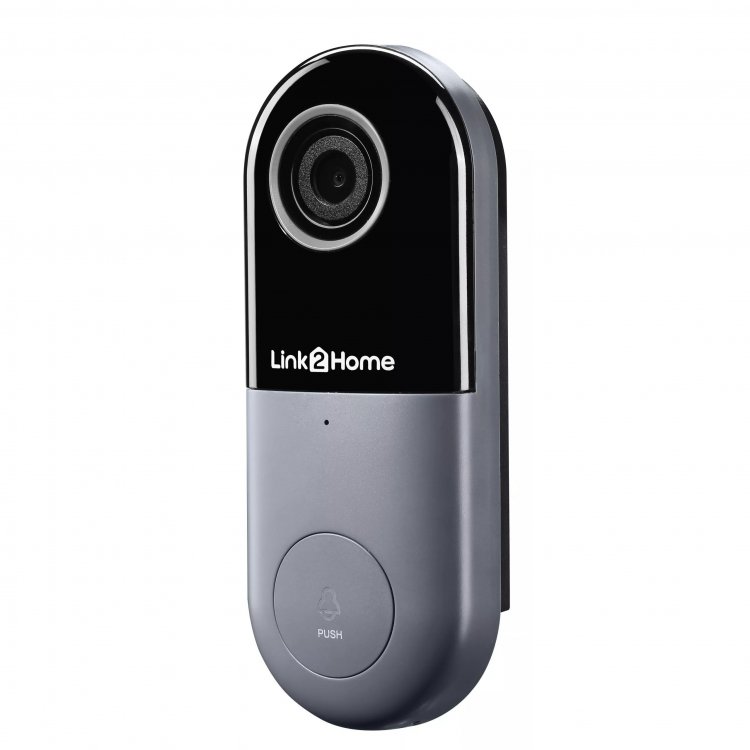

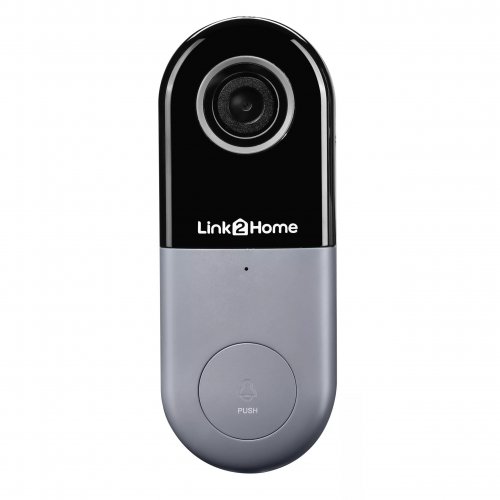

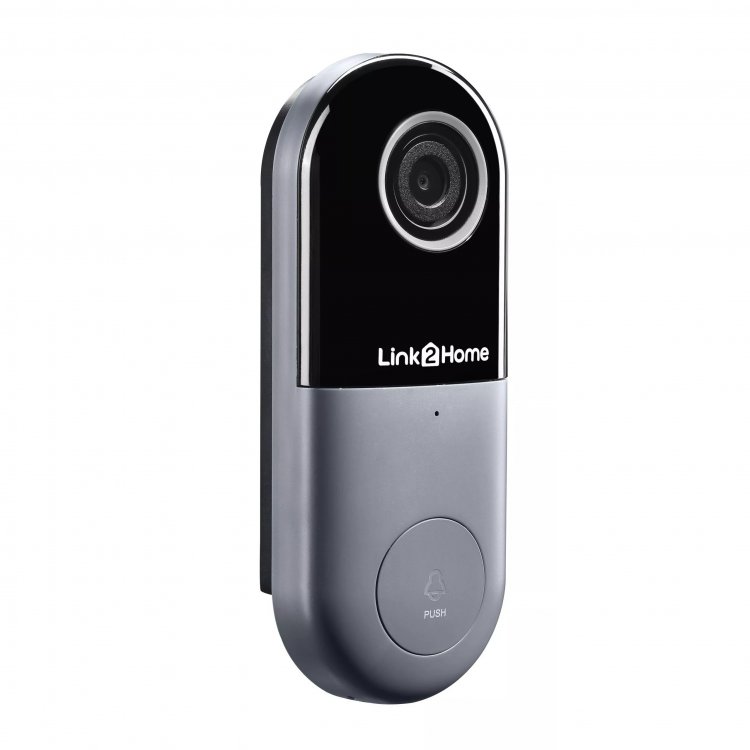

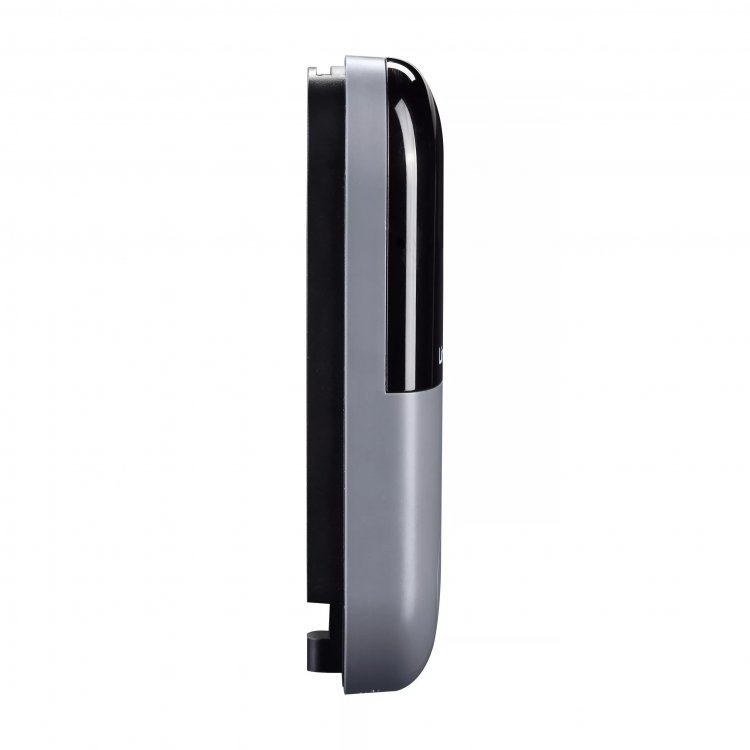

Link2Home L2H-BELLWIRED Smart video doorbell (wired)

Instant alerts. The BellWired sends an instant alert when the doorbell button is pressed or if it detects motion and sound. Any changes outside your home are instantly alerted to your device

Voice Control. This BellWired is fully integrated with Alexa Echo Show and Google Screen devices including Google Chromecast. Just ask your smart speaker to access your camera device by saying “Alexa show me the front door” or “Hey google show me the front door on the living room TV”.

Detailed View. The BellWired streams Full HD, 1080p content to your device. With the ability to get a 130° wide-angle view of the area, zoom in and enhance, you will be able to see every detail. This is the same day or night thanks to Night Vision LED sensors which let you view the whole scene at night. The CMOS sensor also provides better image clarity compared to CCD Sensors.

Bell Chime. The BellWired emits its own exterior audible tone when the doorbell button is pressed. It also sends an instant alert through the app with sound and is compatible with the L2HBellChime (sold separately). The L2HBellChime allows you to choose from 4 additional tones, emits a 120dB alert, can be installed up to 20m away from your doorbell and is powered via USB.

Built-in microphone & speaker. This lets you tune in to what is going on, and talk back via the Link2Home Pro app. So, you can see who’s around and respond.

Get alerts on your phone. If your BellBattery detects something irregular or regular, you can receive an activity alert on your smart phone with a snapshot of what happened. You can record video clips of activity using the inbuilt memory card* function or cloud service**.

Secure. Everything about the flex camera is private. Using security with 128-bit SSL encryption.

Quick and easy set up. The BellWired can be easily set up outside your home. Simply wire up using the power adaptor included in the box and plug into a standard 13amp socket outlet. Download the Link2Home Pro app and set it up from your Android or iOS device. No hub required.

All weathers. The BellWired is weather-proof so it will always keep monitoring, come rain or shine.

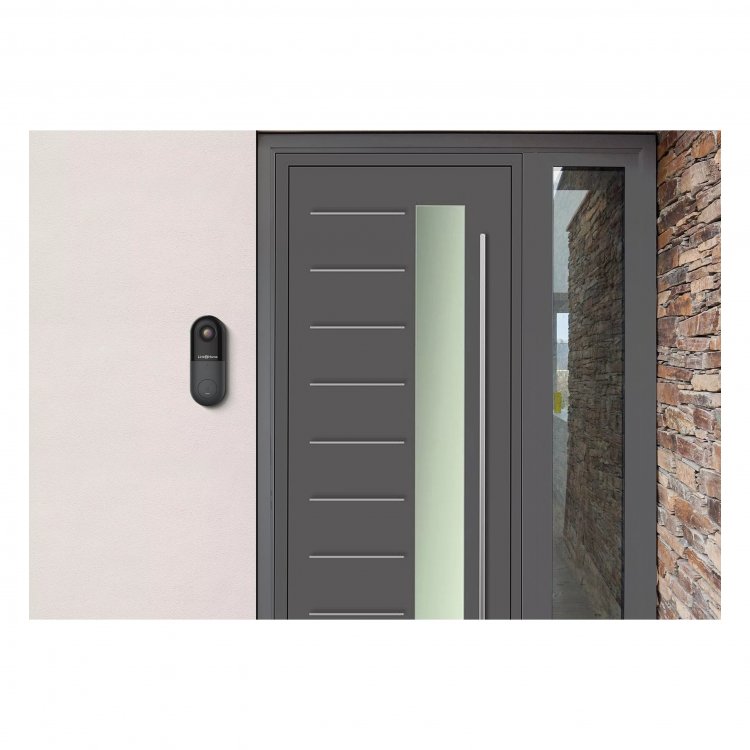

Put it anywhere. The BellWired can be placed anywhere around your front door or other area. The mount can be fixed to wood or masonry using the screws provided.

Smart features. Using the Link2Home Pro app you can set up a range of Automation features including recording during specific times or BellWired to trigger another device. Such as if the BellWired detects movement or sound but no one rings the bell turn on a bedroom light or other.

*Memory card. Use the inbuilt MicroSD card slot (sold separately) to record events or stream video 24/7. Based on event recording:

Using a MicroSD card:

16GB Micro SD Card – up to 3 days
32GB Micro SD Card – up to 5 days
64GB Micro SD Card – up to 10 days
128GB Micro SD Card – up to 21 days

**Cloud Service. With an additional cloud subscription (sold separately) you have 24/7 monitoring with key events recorded. So, you can scan through up to 30 days of event video history to see what you’ve missed.

System requirements:

• Wi-Fi connection
• Mobile or tablet with iOS 8 or later, or Android 4.1 or later
• Free Link2Home Pro account

• Sensor Type: 1/3″ CMOS
• Min illuminance: Colour 0.01Lux@F1.2 Black and White 0.001Lux@F1.2
• Viewing angle: 130°
• Lens: 4.0mm F2.0
• Shutter: 1/25-1/100,000 per second
• IR: High power LED with ICR
• IR distance: 10m
• WDR: Digital WDR
• Video compression standard: H.264
• Bit rate: 32Kbps-2Mbps
• Max picture size: 1920×1080
• Frame Rate: 1-25 per second
• Image setting: Supports HD/SD; supports flip;
• Drawing speed: 4 seconds
• Audio: Full duplex two-way audio
• Storage: Support SD card(Max 128G), Cloud storage
• Communication protocol: TCP/HTTP,DHCP,DNS,RTSP
• Wi-Fi standard: IEEE802.11b/g/n
• Frequency: 2.4 GHz – 2.4835 GHz
• Channel bandwidth: Support 20/40MHz
• Wi-Fi security: WPA-PSK/WPA2-PSK
• Data security: AES128
• Intelligence: Supports sound and motion detection
• Working temperature: -20°C to 50°C
• Optional accessories: USB battery charger, Wireless Chime
• Power: AC 12- 24v power supply
• Power consumption: 4.5W Max
• Size(mm): 48×117
• Weight(g): 106

• L2HBellWired Wi-Fi outdoor battery doorbell
• Power adapter
• Bracket
• Angled Bracket
• Quick Start Guide
• Mounting Screws
• Adhesive tape
• Screwdriver
• Reset pin
