Olympic 125-310-005
Image is for illustrative purposes only

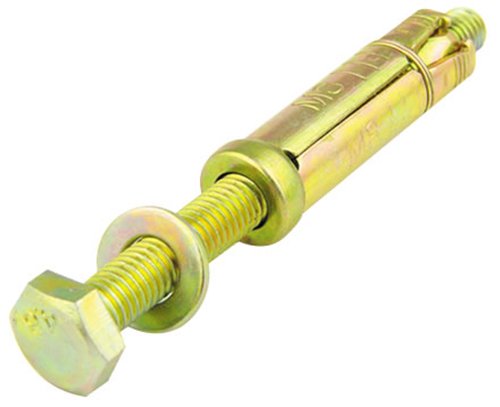

Olympic 125-310-005 M6 X 10 Loose Bolt Anchors

Part: 125-310-005
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Olympic Loose Bolt Anchors are an ideal floor fixing when after inserting the shield in the hole, objects have to be slid in to place. They are also a Grade 4.8 bolt.

  • Suitable for holding down anchors for machinery, seating, switchgear, racking & structural fixings

Screwing system :Outside hexagon
Sleeve length :40mm
Min. drill hole depth :50mm
Material sleeve :Steel
Length :40mm
Mounting feature :Bolt
Bracing :Plug-in anchor/plug-in cam
Effective anchorage depth :50mm
Material quality sleeve :Other
Push-through installation :No
Pre-positioned installation :No
Max. clamping thickness :10mm
Material anchor :Steel
Material quality anchor :4.8 (steel)
Surface protection anchor :Galvanic/electrolytic zinc plated
Surface protection sleeve :Galvanic/electrolytic zinc plated
With collar :No
Fastening by expander tool :No
Anchor model :Bolt

Make an enquiry

...
