Project EV EVA-07SE-BLK
Image is for illustrative purposes only
Project EV EVA-07SE-BLK
Dimensions

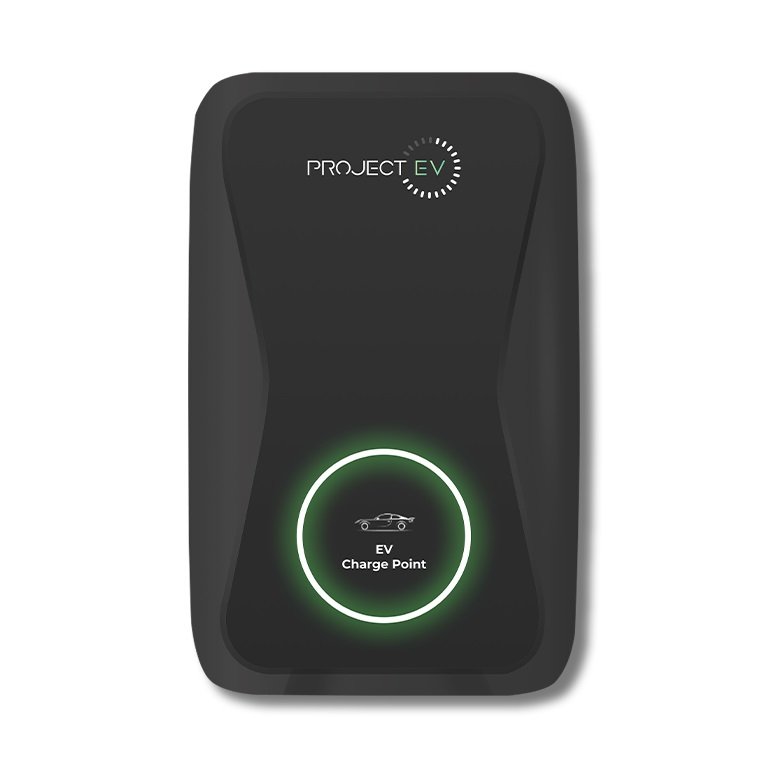

Project EV EVA-07SE 7.3kW (32A) Pro Earth Wall AC Charger Single Gun

Part: EVA-07SE
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

The Project EV EVA-07S-SE is a single-phase, fast AC electric vehicle charger, that comes with built-in Pro Earth protection, meaning the charger does not require the addition of a costly earth spike installation.

The 7.3kW pro earth charging unit comes packed with features as well as a market-leading five-year warranty. Complete with a compact sleek design and solar compatibility; this charger also has time-shifting capabilities giving you the opportunity to save £100’s per year*. With the charging unit's integrated cable locking feature you can ensure total protection, granting safety and convenience tethering the charger, cable, and vehicle all together securely.

With a CT clamp included as standard, to enable dynamic load management and solar capabilities via the charger settings, the EVA-07S-SE is ready out of the box and perfect for any domestic electric vehicle charging. Optional ground mounts (EV-GMEVA-S-2) & optional floor stands (EV-FLRSTAND) are available to purchase.

*The amount of potential savings you can save per year depends on your energy provider, and your set energy tariff rates.

Input Amps:32a Single Phase
Input voltage:230V AC
Input frequency:50/60HZ
Output voltage:230V AC
Max. output power:7.3KW
Max. output current:32A
Charging interface type:IEC 62196-2, Type 2
Over voltage protection:Yes
Under voltage protection:Yes
Over load protection:Yes
Short circuit protection:Yes
Earth leakage protection:Yes
Over-temp protection:Yes
Surge protection:Yes
PEN fault protection:Yes
Ethernet/WIFI/4G:Yes/Yes/Option
Outlet Type:Type 2 (socket)
RCBO:Type A +6mA DC fault current protection (Equivalent to Type B)
LED Indicator light:Yes
Emergency stop button:Yes
Intelligent power adjustment:Option
Protection degree:IP65
Environment temperature:-25C to +50C
Relative humidity:0-95% non-condensing
Cooling:Natural air cooling
Standby power consumption:<8W
IK Rating:IK10
Dimension (W/H/D):240/380/145mm
Weight:<5Kg
Wall-mounting:Standard
Floor-pole:Opt. EV-FLRSTAND
Grount-mounting:Opt. EV-GMEVA-S-2
CE:Yes
SA8000 Accredited:Yes
OZEV Approved:Yes
