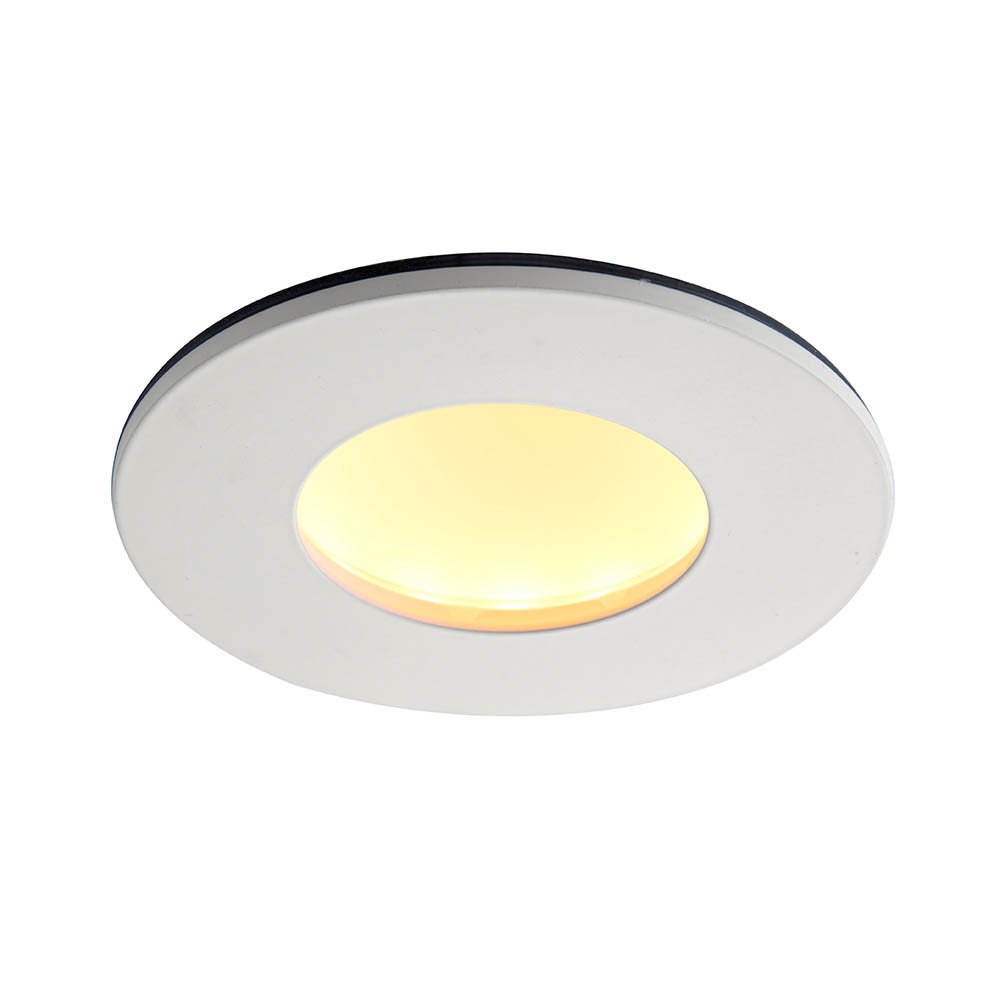

Saxby 102669 OrbitalPRO 4CCT 9W Matt White IP65 Downlight, fire rated
Image is for illustrative purposes only
Previous
Next
Saxby 102669 OrbitalPRO 4CCT 9W Matt White IP65 Downlight, fire rated
Saxby 102669 OrbitalPRO 4CCT 9W Matt White IP65 Downlight, fire rated
Saxby 102669 OrbitalPRO 4CCT 9W Matt White IP65 Downlight, fire rated
Saxby 102669 OrbitalPRO 4CCT 9W Matt White IP65 Downlight, fire rated
Saxby 102669 OrbitalPRO 4CCT 9W Matt White IP65 Downlight, fire rated
Saxby 102669 OrbitalPRO 4CCT 9W Matt White IP65 Downlight, fire rated

Saxby 102669 OrbitalPRO 4CCT 9W Matt White IP65 Downlight, fire rated, 110mm

Part: 102669
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Saxby Lighting's popular OrbitalPRO fitting has been upgraded. Using the latest in Colour Changing Technology (CCT), each OrbitalPRO can be 2700K, 3000K, 4000K or 6000K. with a simple flick of a switch. The SMD LED modules project upto 590 lumens of indirect LED light from the unique anti-glare dome. The slim line, patented design is fire rated, IP65 rated and can be covered with insulation, whilst fitting into shallow ceiling voids. Supplied with a dimmable Eaglerise driver that works with leading and trailing edge dimmers. Fitted with a push fit tool-less terminal block for ease of install.

  • Dimmable
  • Matt white
  • Constructed from die cast aluminium alloy & steel

Product Wattage:9W
Product Lumen:590
Lumen/W:66
Kelvin:2700/3000/4000/6000K
SDCM:6
CRI:80
Dimmable:Yes
Lifetime (Hours):30000
Beam Angle:130º
Power Factor:0.9
Driver Type:Constant Current 200mA
Inrush Current at Start Up:2.1A
Energy Rating:F
Product Voltage:220-240V
Hertz:50/60
Surge Protection (KV):1.5
Operating Temp.:-20 to 40 Degree
Product Weight (KG):0.302
Cut-out (mm):Ø97mm
Minimum Cavity Depth (mm):45mm

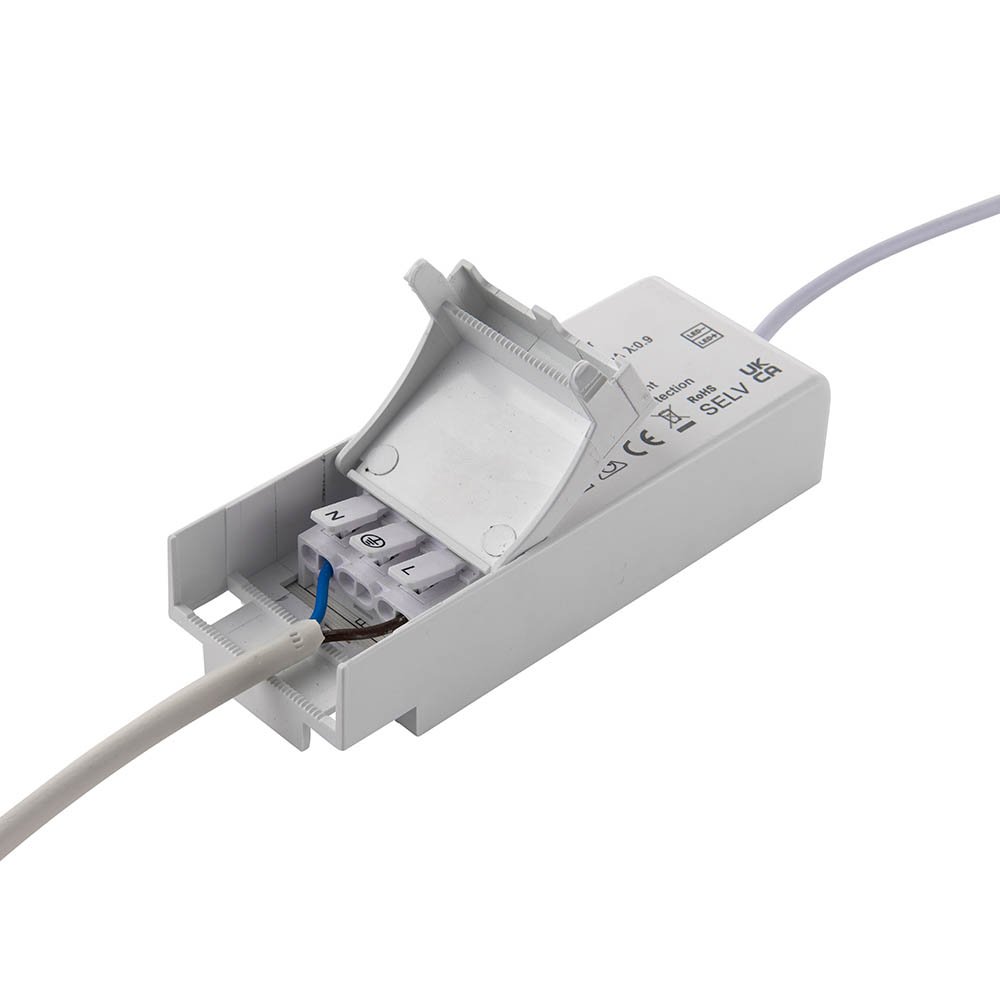

Terminal Block:3 way Quick fit
Class:2
