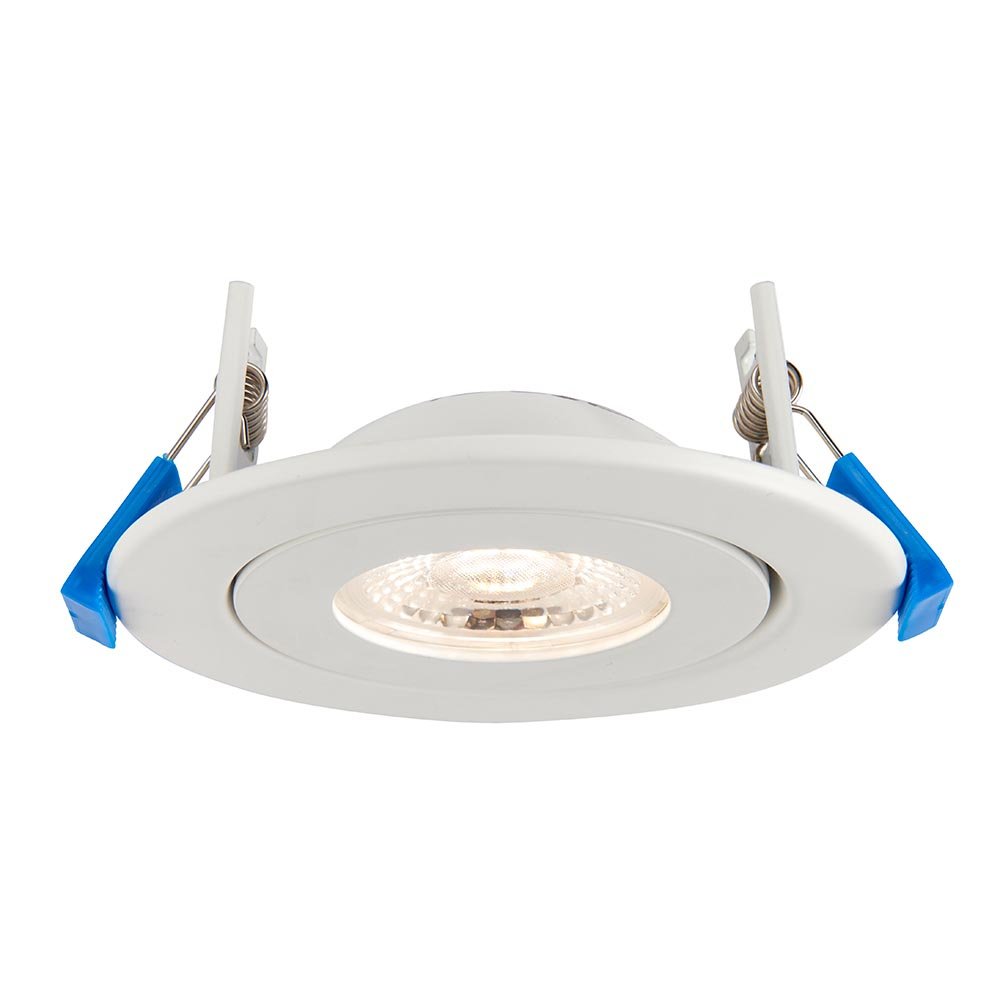

Saxby 103029 Shield360 Tri Wattage 4CCT 8W Downlight, fire rated, 110mm

Part: 103029
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

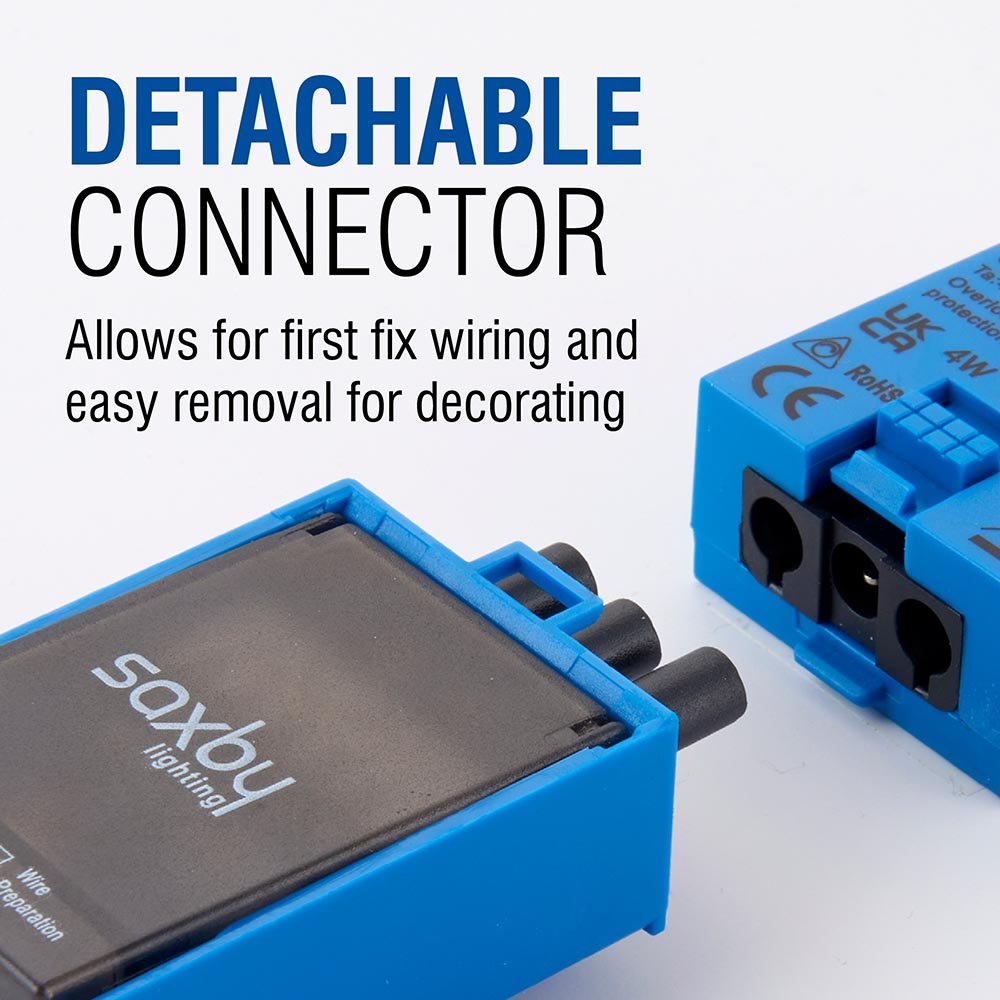

The Shield360 is Saxby's new versatile downlight. This fitting comes with a 3-way Plug and Play connector which allows users to loop in and out.

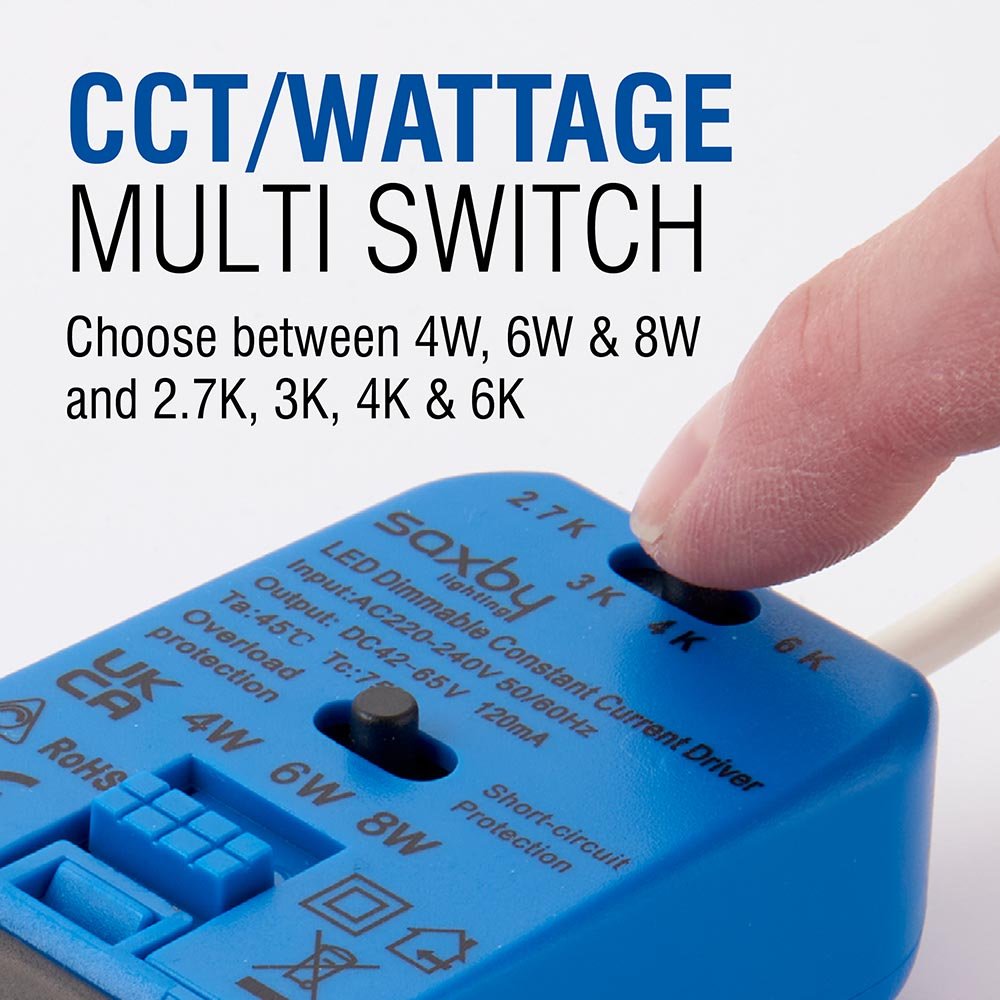

The connector has a simple 4-way CCT switch allowing users to choose between 2700K, 3000K, 4000K or 6000K and a 3-way Watt switch allowing users to choose between 4W, 6W or 8W.

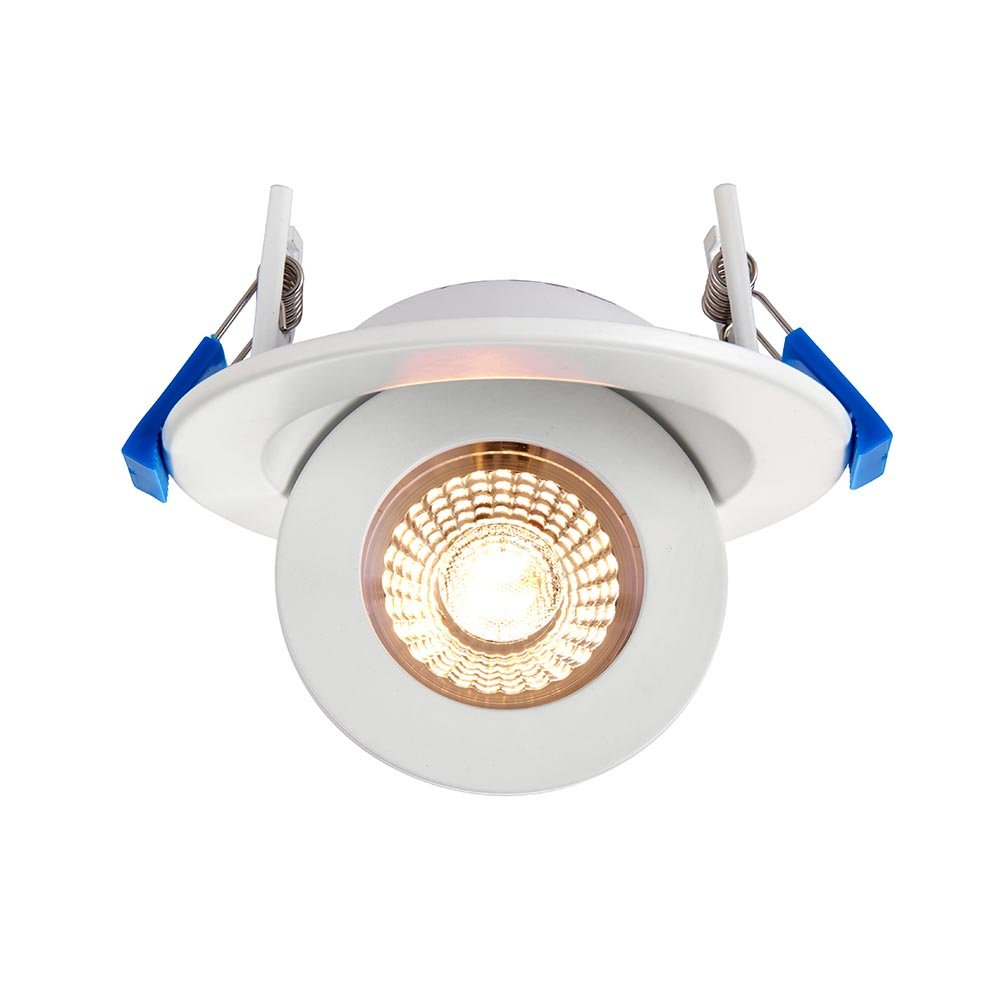

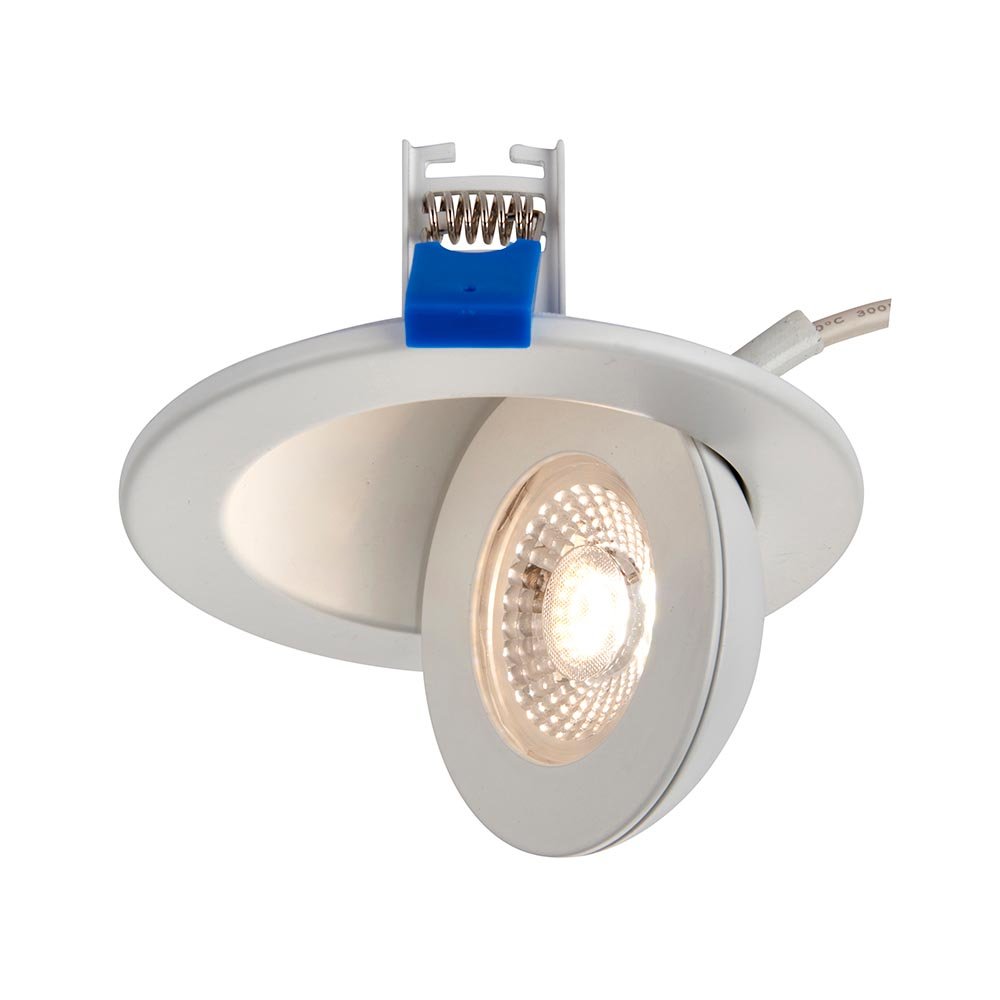

Other features include: the option to be covered with insulation, fits into shallow ceiling voids, IP65-rated, and fully fire-rated for 90-minute ceilings. The Shield360 swivels on 1 axis to be able to rotate 360°.

  • Fully adjustable
  • Dimmable
  • 360 degree rotation
  • Matt white
  • Constructed from die cast aluminium alloy & steel & acrylic

Product wattage:4/6/8W
Product Lumen:400/600/800
Product Lumen/W:100
Kelvin:2700/3000/4000/6000K
Energy Rating:E
Dimmable:Yes
Beam Angle:60º
Power Factor:0.9
CRI:80
Lifetime (Hours):30000
LED Type:SMD
SDCM:6
Driver Type:Constant Current 120mA
Inrush Current at Start Up:Max. 24A
Product Voltage:220-240V
Hertz:50/60
Surge Protection (KV):1.5
Operating Temp:-20 to 40 Degree
Product Weight (KG):0.249
Cut out:Ø90mm
Minimum Cavity Depth:45mm

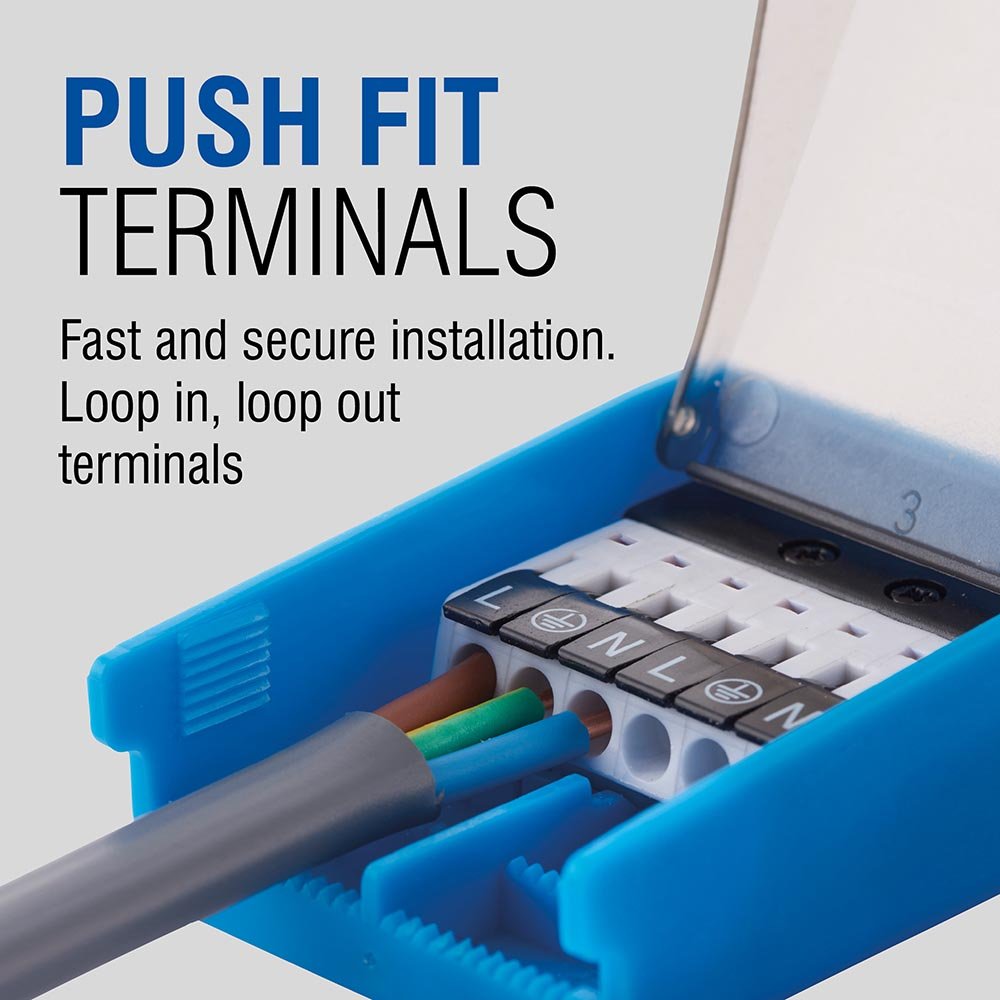

Terminal Block:Push-fit 6 ways
Class:2
