Saxby 92514 Emergency LED conversion kit EM

Name: Saxby 92514 Emergency LED conversion kit EM
Brand: Saxby Lighting
SKU: 8997
Price: 99999 GBP
Availability: InStock

Part: 92514

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

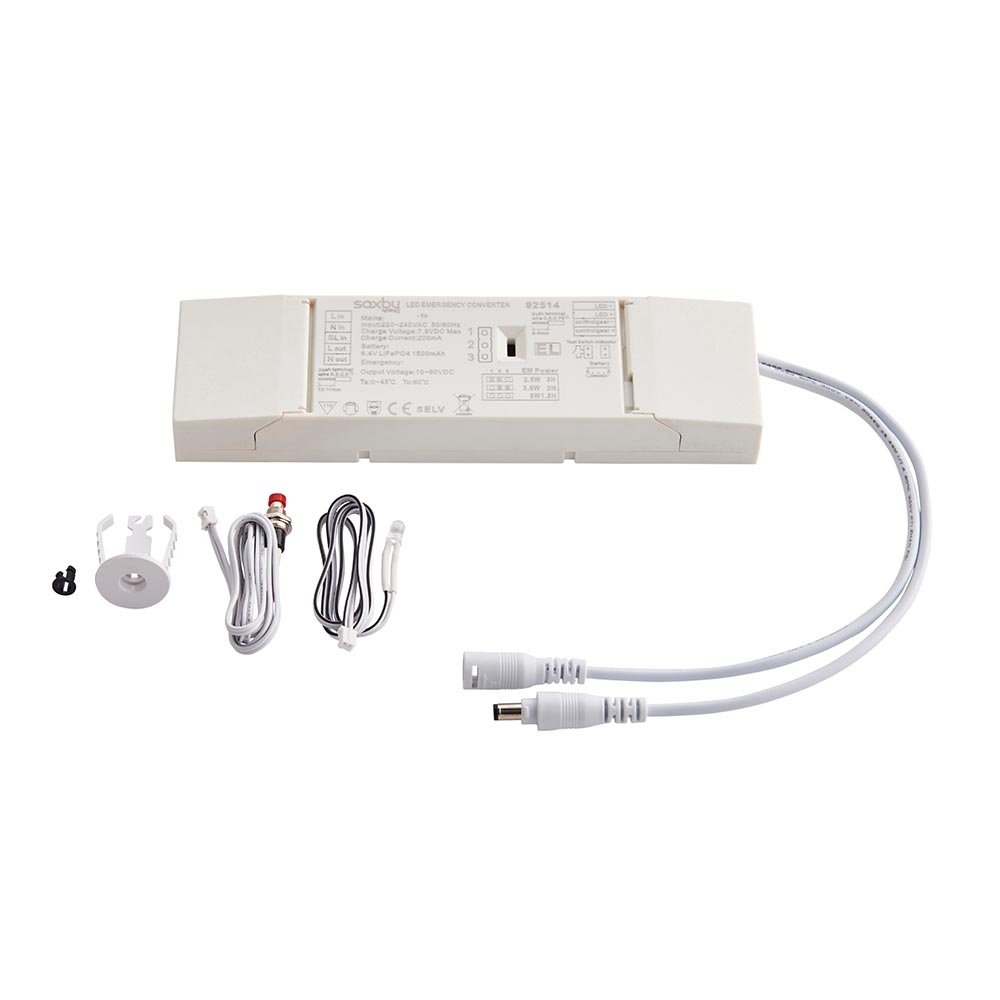

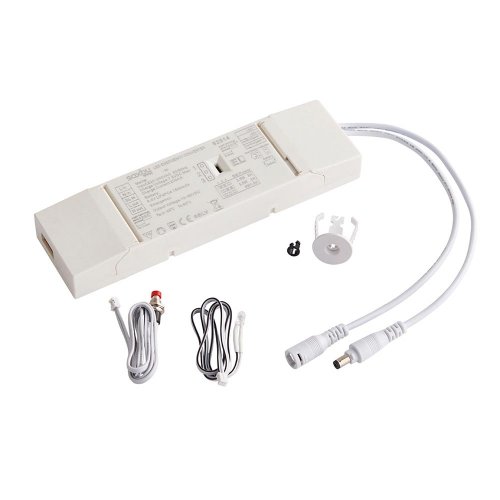

Saxby Lighting's LED emergency conversion kit has been designed to work with our LED product ranges to deliver the required 3-hour emergency lighting.

Supplied with all the cables that you need, a charging LED and clip on bezel for fitting in ceiling tiles and an optional test switch, it is straightforward to install to the LED driver and products.

Gloss white pc
Constructed from polycarbonate

Rated supply voltage:	220-24VAC
Mains frequency:	50/60Hz
Mains input current:	25mA-38mA
Mains Input power:	3.5W±10%-4W±10%
Power factor:	0.75C
Battery charge current:	200mA
Battery warranty:	2 years
EM LED current:	13-185mA
EM LED voltage:	10-90VDC
EM LED power:	2.5W
EM LED emergency time:	3h
Ambient temperature ta:	0....+45ºC
Max. casing temperature tc:	+60ºC
Battery type:	LiFePO4 6.4V 1500mAh
IP rating:	IP20
Dimensions (L x W x H):	199 x 55.2 x 24.5mm
Cut-out Dia:	60mm
