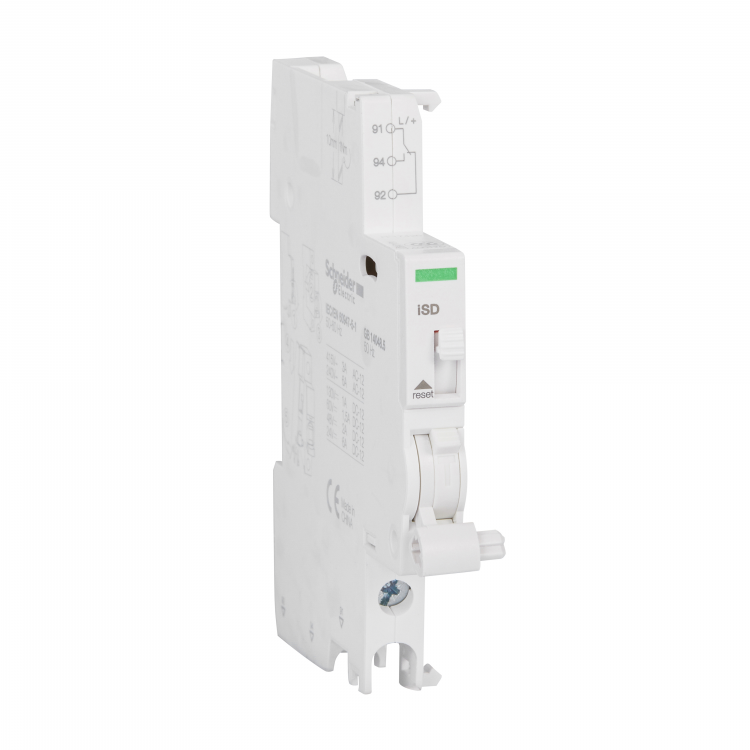

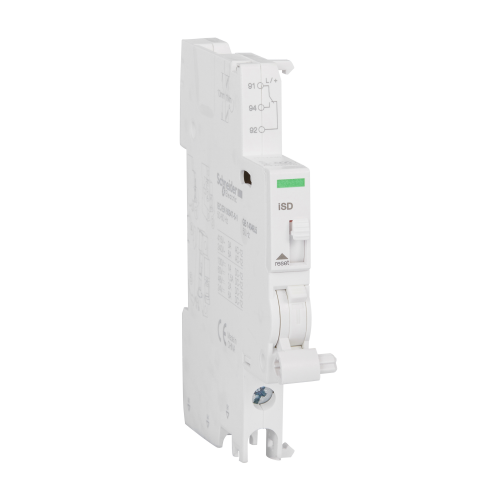

Schneider Electric A9A26927
Image is for illustrative purposes only

Schneider Electric A9A26927 ACTI9 ISD 240-415VAC 24-130VDC auxiliary contact

Part: A9A26927
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

auxiliary contact, Acti9, iSD, 1OC, AC/DC.

  • This Acti9 iSD electric auxiliary is a remote fault indicator contact.
  • The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC.
  • EN/IEC 60947-5-1
  • Mechanical Indicator
  • Clip-on DIN rail mounting mode
  • Rated Insulation Voltage: 500 V
  • Rated Impulse Withstand Voltage: 5kV
  • The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC.
  • The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC.

Rated voltage :240V
Rated switch current :1A
Number of fault-signal switches :1
Device fitting :Earth leakage circuit breaker and miniature circuit breaker (MCB)
Number of contacts as normally closed contact :0
Number of contacts as normally open contact :0
Number of contacts as change-over contact :1
With auto test for earth leakage function :No
Suitable for max. number of poles main contact unit (total) :4
Suitable for max. current main contact unit :63A
