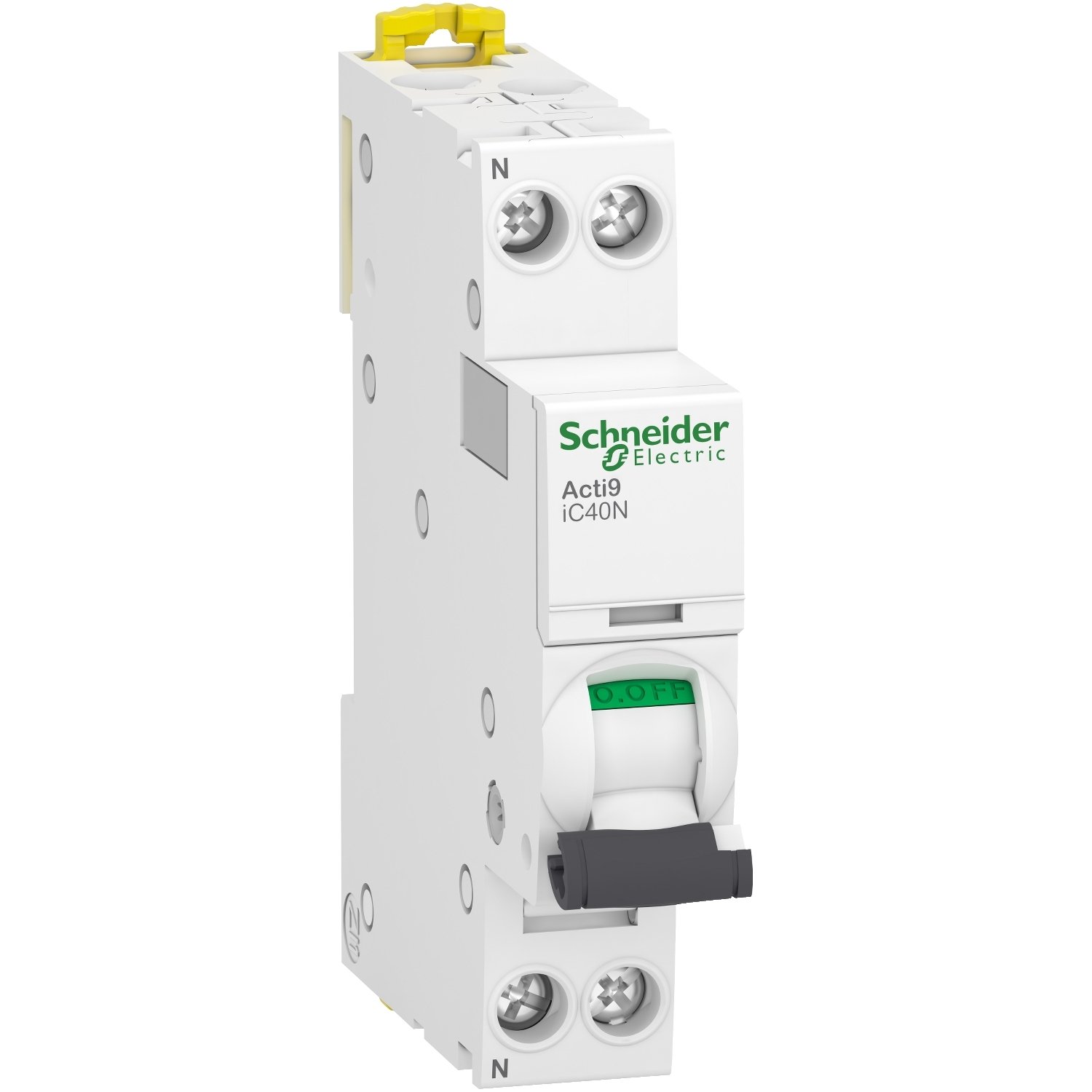

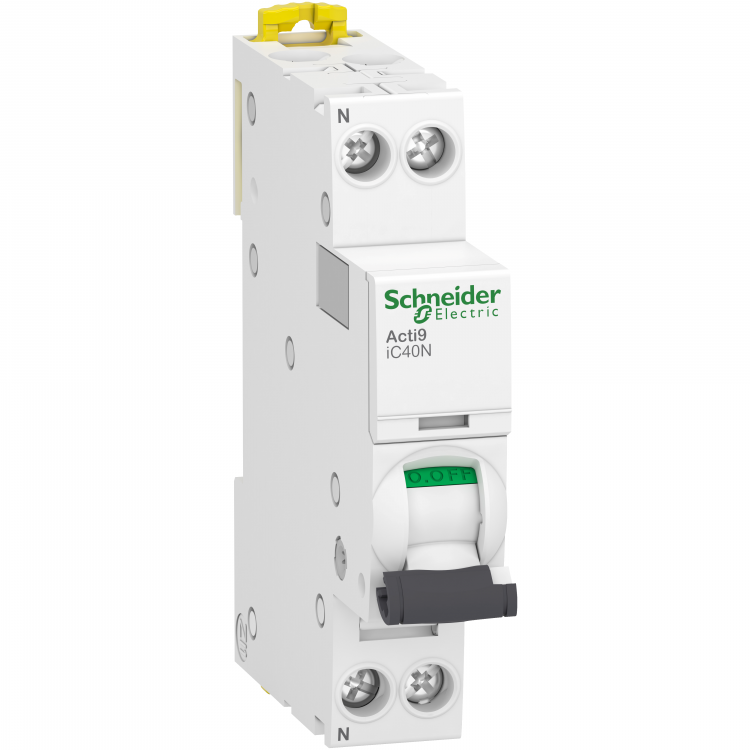

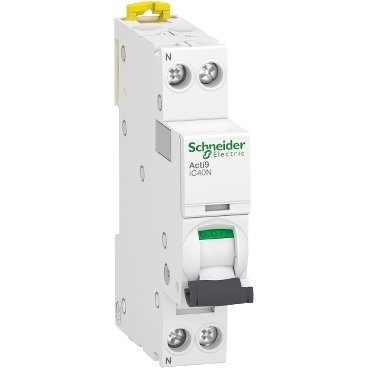

Schneider Electric A9P54625 Acti9 iC40N 1PN C 25A 6000A/10KA MCB

Part: A9P54625
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Acti9 iC40N - miniature circuit-breaker - 1P+N - 25A - C Curve - 6000A/10kA.

  • This Acti9 iC40N product is a low voltage miniature circuit breaker (MCB).
  • It is a 1P+N circuit breaker with 1 protected pole and 25A In rated current and C tripping curve.
  • The rated short circuit breaking capacity goes up to 10kA at 230VAC conforming to EN/IEC 60947-2 standard and 6000A at 230VAC conforming to EN/IEC 60898-1 standard.
  • This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2.
  • This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation.

Voltage type :AC
Recess depth :44mm
Rated current :25A
Rated voltage :230V
Frequency :50 to 60Hz
Tripping characteristic (type/curve) :C
Rated insulation voltage Ui :400V
Current limiting class :3
Over voltage category :3
Pollution degree :3
Width in number of modular spacings :1
Degree of protection (IP rating) :IP20
Number of protected poles :1
Concurrently switching N-neutral :Yes
Connectable conductor cross section solid-core :1 to 16mm2
Connectable conductor cross section multi-wired :1 to 10mm2
Ambient temperature during operating :-25 to 70°C
Additional equipment possible :Yes
Number of poles (total) :2
Rated short-circuit breaking capacity Icn EN 60898 at 230 V :6kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V :10kA
Rated impulse-withstand voltage (Uimp) :4kV
