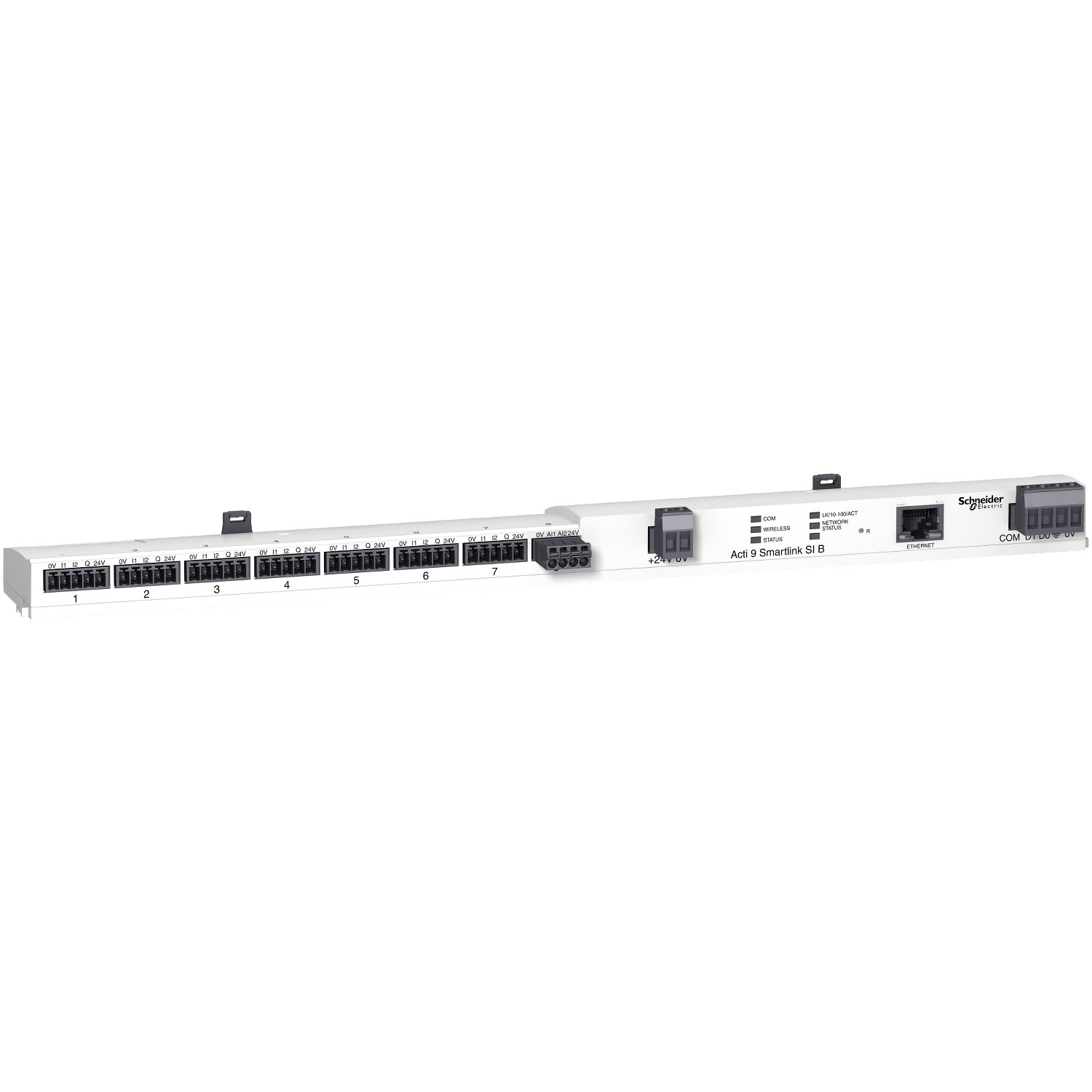

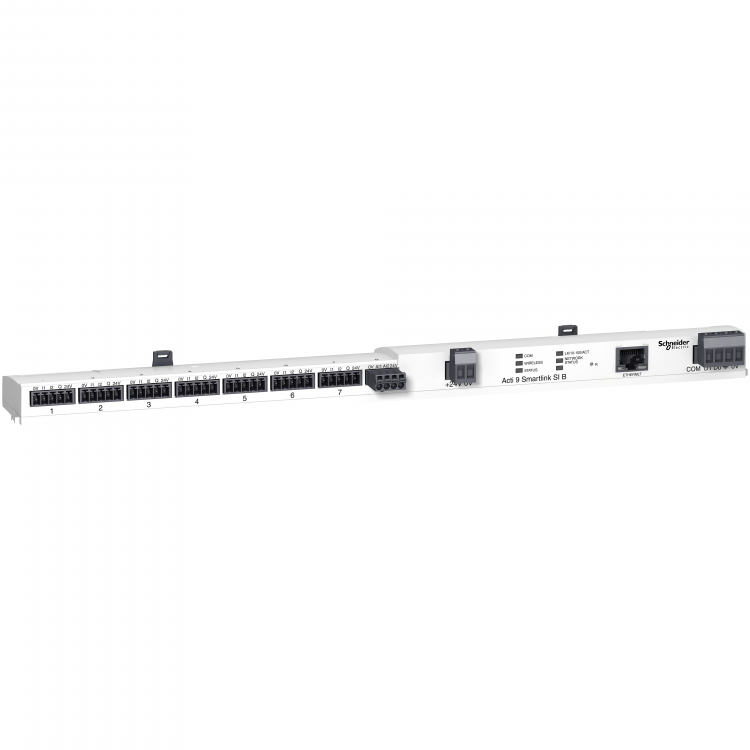

Schneider Electric A9XMZA08 Acti9 Smartlink SI B - Modbus TCP/IP and Wireless communication module

Part: A9XMZA08
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Acti9 Smartlink SI B - Modbus TCP/IP and Wireless communication module.

  • This Acti 9 Smartlink SI B is a Modbus Master TCP/IP and Wireless smart communication module with 7 channels and 1 analog input.
  • It communicates with the auxiliaries iACT24 for iCT contactors, iATL24 for iTL impulse relays, iOF+SD24 for iC60, iID, ARA, RCA & iSW-NA.
  • It can master up to 8 Acti 9 SmartLink ModBus or other ModBus slaves connected thanks to the RS485 Modbus connector.
  • It is used to transfer data from Acti 9 devices to a PLC or network monitoring system thanks to the RJ45 Ethernet connector.
  • It communicates also with OF+SD24 for C60, C120, DPN, ID & C60H-DC, Ti24 for RCA iC60 & Reflex iC60. It can associated upto 20 PowerTag energy sensors with radiofrequency communication.

Width :359mm
Height :23mm
Depth :40mm
Input current at signal 1 :2.5mA
Suitable for safety functions :No
Number of digital inputs :14
Number of digital outputs :7
Number of analogue inputs :2
Number of analogue outputs :0
Voltage type of supply voltage :DC
Supporting protocol for LON :No
Number of HW-interfaces industrial Ethernet :1
Number of HW-interfaces RS-232 :0
Number of HW-interfaces RS-422 :0
Number of HW-interfaces RS-485 :1
Number of HW-interfaces serial TTY :0
Number of HW-interfaces USB :0
Number of HW-interfaces parallel :0
Number of HW-interfaces other :0
With optical interface :No
Type of voltage (input voltage) :DC
Supporting protocol for TCP/IP :Yes
Supporting protocol for ASI :No
Supporting protocol for PROFIBUS :No
Supporting protocol for CAN :No
Supporting protocol for INTERBUS :No
Supporting protocol for KNX :No
Supporting protocol for MODBUS :Yes
Supporting protocol for Data-Highway :No
Supporting protocol for DeviceNet :No
Supporting protocol for SUCONET :No
Supporting protocol for other bus systems :No
Output voltage at digital output :24V
Output current at digital output :0.1A
Analogue input, current :Yes
Analogue input, voltage :Yes
Analogue input, resistor :Yes
Analogue input signal configurable :Yes
Short-circuit protection, digital outputs available :Yes
Resolution of the analogue inputs :12Bit
Type of digital output :Other
Type of electric connection :Plug-in connection
Rail mounting possible :No
Explosion safety category for gas :None
Explosion safety category for dust :None
Fieldbus connection over separate bus coupler possible :No
System accessory :Yes
Appendant operation agent (Ex ia) :No
Appendant operation agent (Ex ib) :No
Degree of protection (IP rating) :IP20
Supporting protocol for SERCOS :No
Supporting protocol for INTERBUS-Safety :No
Number of HW-interfaces PROFINET :0
Number of HW-interfaces Wireless :1
Front built-in possible :No
Rack-assembly possible :No
Wall mounting/direct mounting :Yes
Radio standard Bluetooth :No
Radio standard WLAN 802.11 :No
IO link master :No
Performance level acc. to EN ISO 13849-1 :None
Supporting protocol for AS-Interface Safety at Work :No
Supporting protocol for DeviceNet Safety :No
Supporting protocol for EtherNet/IP :No
Supporting protocol for Foundation Fieldbus :No
Supporting protocol for PROFINET CBA :No
Supporting protocol for PROFINET IO :No
Supporting protocol for PROFIsafe :No
Supporting protocol for SafetyBUS p :No
Supply voltage DC :24V
Permitted voltage at input :19.2 to 28.8V
Type of output voltage :DC
Digital inputs configurable :Yes
Analogue inputs configurable :Yes
Analogue outputs configurable :No
Digital outputs configurable :Yes
Radio standard GPRS :No
Radio standard GSM :No
Radio standard UMTS :No
SIL according to IEC 61508 :None
