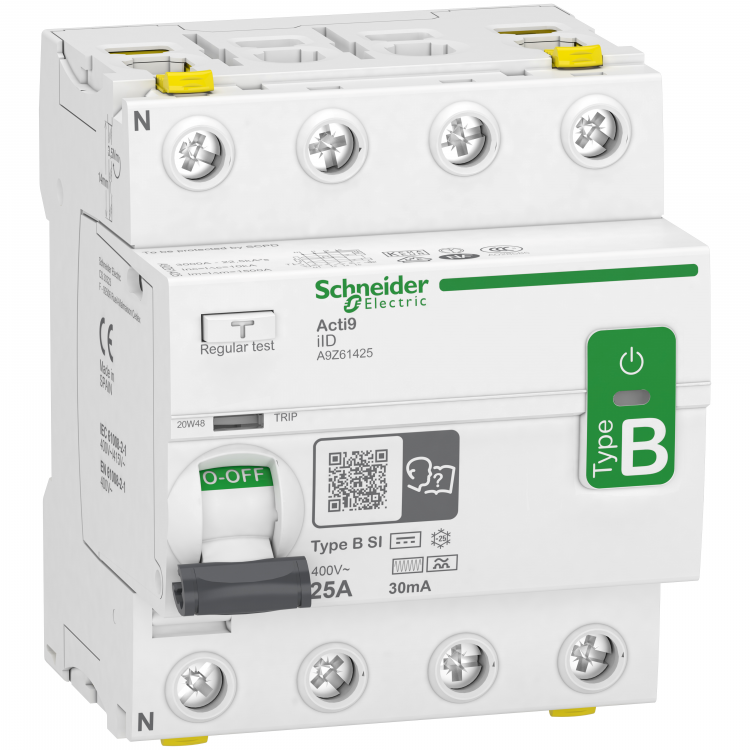

Image is for illustrative purposes only

Schneider Electric A9Z61425 Acti9 iID 4P 25A 30mA B-SI RCCB

Part: A9Z61425
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Acti9 iID - Residual Current Circuit Breaker - 4P - 25A - 30mA - B-SI type.

  • This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB).
  • It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles.
  • This product protects against electrical shock by direct or indirect contact and fire hazards.
  • It performs the function of disconnection of electrical circuits in case of earth fault.
  • Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face.
  • This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance
  • This product is compliant with IEC/EN 61008-2-1 and IEC/EN 62423 standard.
  • The (Im/I?m) rated breaking and making short circuit capacity is 1500A. The (Inc/I?c) conditional rated short circuit current is 10kA.
  • It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles.
  • The Ue operational voltage is 400VAC.

Mounting method :DIN rail
Recess depth :44mm
Rated current :25A
Rated voltage :400V
Rated insulation voltage Ui :500V
Number of poles :4
Rated fault current :30A
Leakage current type :B
Selective protection :No
Surge current capacity :3kA
Pollution degree :3
Width in number of modular spacings :4
Short-time delayed tripping :No
Frequency :50 Hz
Degree of protection (IP rating) :IP20
Connectable conductor cross section solid-core :1 to 35mm2
Connectable conductor cross section multi-wired :1 to 25mm2
With interlocking device :Yes
Ambient temperature during operating :-25 to 60°C
Additional equipment possible :Yes
Rated impulse-withstand voltage (Uimp) :6kV
