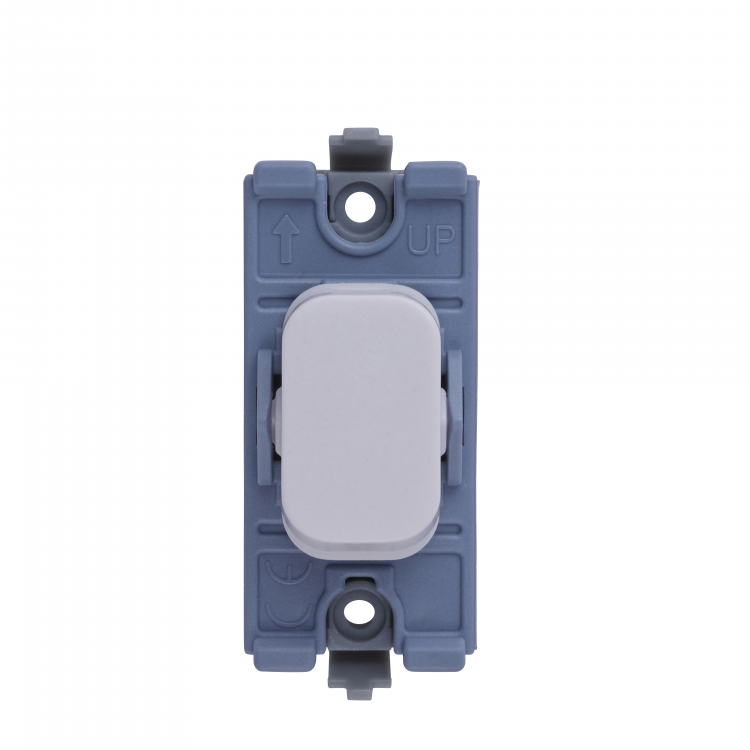

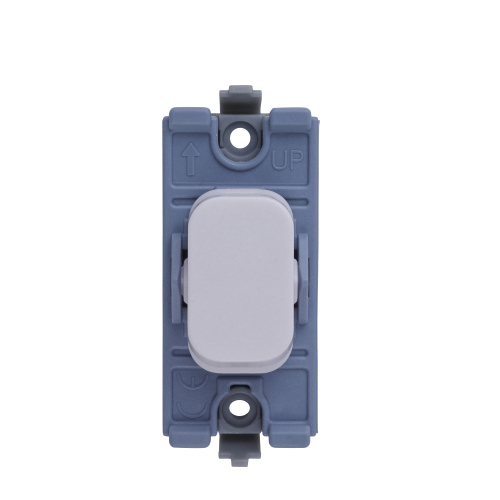

Schneider Electric GGBL10IW Lisse 10AX Intermediate Switch Grid Mod White

Part: GGBL10IW
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Lisse - intermediate switch module - 10AX White.

  • Intermediate switch module
  • Easy to install with clip-in system
  • Flush mounting module
  • Grid modules compatible with Lisse White Moulded grid plates
  • Modules can be upgraded without removing the mounting grid, creating the desired style at home and commercial spaces
  • 10AX rated current
  • IP20 degree of protection

Nominal voltage :230V
Mounting method :Surface mounted
Assembly arrangement :Basic unit fully enclosed
Method of operation :Rocker
Colour :White
Halogen free :Yes
Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Rated current :10A
Material qualifier :Other
Material :Other
Type of fastening :Screw mounting
Wiring system :Intermediate switch
Number of rockers/gangs :1
RAL-number (similar) :9003
Switching current for fluorescent lamps :10AX
Push button switch :No
Washing machine switch :No
Surface finish :Matt
Degree of protection (IP rating) :IP20
Width of device :24mm
Height of device :25mm
Depth of device :59mm
Label space/information surface :Yes
