Image is for illustrative purposes only
|
 |
 |
01482 589015

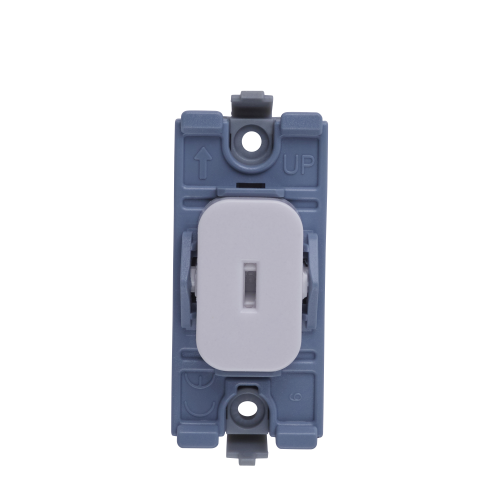

Schneider Electric GGBL20DPKWPW Lisse 20AX DP Key Switch Grid Module White
Part: GGBL20DPKWPW
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Lisse - 2-pole key switch module - 20AX - white.
- Double pole key switch module
- Easy to install with clip-in system
- Compatible with the Lisse White Moulded range of grid plates
- 2 pole rocker control
- Modules can be upgraded easily creating the desired style at home
- 20AX rated current
- IP20 degree of protection
| Nominal voltage : | 230V |
| Mounting method : | Surface mounted |
| Assembly arrangement : | Basic unit fully enclosed |
| Method of operation : | Rocker |
| Colour : | White |
| Halogen free : | Yes |
| Connection type : | Screwed terminal |
| Illumination : | No |
| Surface protection : | Untreated |
| Rated current : | 20A |
| Material qualifier : | Other |
| Material : | Other |
| Type of fastening : | Screw mounting |
| Wiring system : | 2-pole switch |
| Number of rockers/gangs : | 1 |
| RAL-number (similar) : | 9003 |
| Switching current for fluorescent lamps : | 20AX |
| Push button switch : | No |
| Washing machine switch : | No |
| Surface finish : | Matt |
| Degree of protection (IP rating) : | IP20 |
| Width of device : | 24mm |
| Height of device : | 25mm |
| Depth of device : | 59mm |
| Label space/information surface : | Yes |
