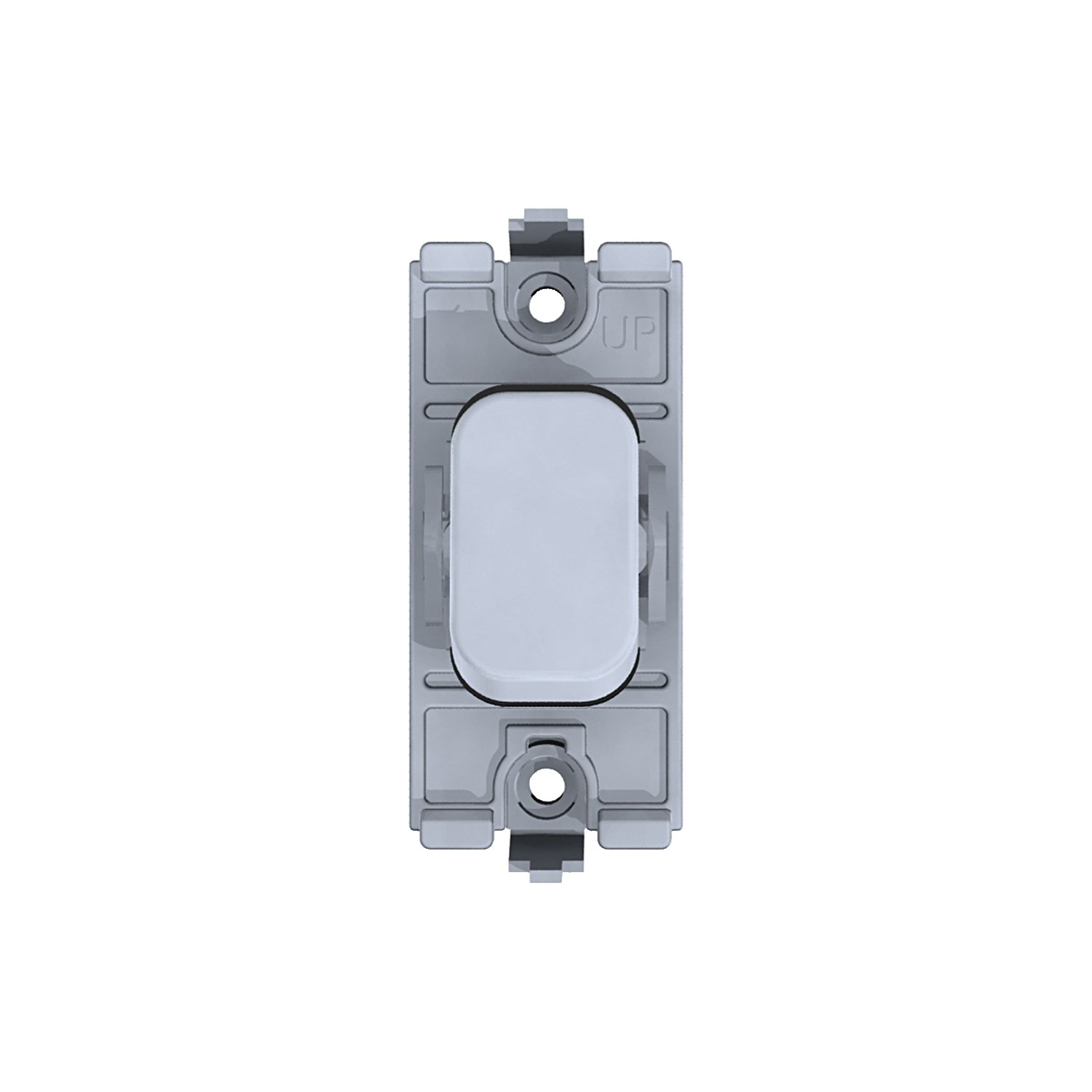

Image is for illustrative purposes only
|
 |
 |
01482 589015
Schneider Electric GGBL20DPM Lisse DP Switch Grid Module 20AX
Part: GGBL20DPM
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Lisse - Switch Module - 20AX DP.
- Ideal for new construction and refurbishment projects
- Easy to install with clip-in system
- Grid modules compatible with Lisse White Moulded grid plates
- Easy to install
- The current-age design allows spaces to look modern and up to date
| Nominal voltage : | 230V |
| Mounting method : | Flush mounted |
| Assembly arrangement : | Insert for modular wiring accessories |
| Method of operation : | Rocker |
| Colour : | White |
| Halogen free : | Yes |
| With mounting plate : | Yes |
| Connection type : | Screwed terminal |
| Illumination : | No |
| Surface protection : | Untreated |
| Rated current : | 20A |
| Feedback-signal contact : | No |
| Material qualifier : | Thermoplastic |
| Type of lighting : | Not included |
| Material : | Plastic |
| Type of fastening : | Engage (snap) |
| Wiring system : | 2-pole switch |
| Number of rockers/gangs : | 1 |
| Switching current for fluorescent lamps : | 20AX |
| Push button switch : | No |
| Washing machine switch : | No |
| Surface finish : | Matt |
| Degree of protection (IP rating) : | IP20 |
| Width of device : | 25mm |
| Height of device : | 59mm |
| Depth of device : | 24mm |
| Label space/information surface : | No |
| Number of module spaces (modular system) : | 0 |
