Schneider Electric GGBL30202USBABSSS

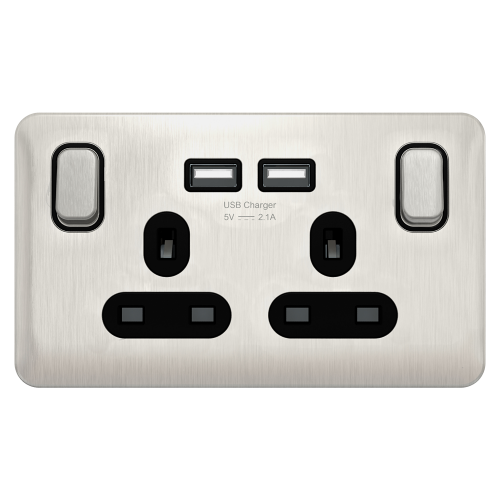

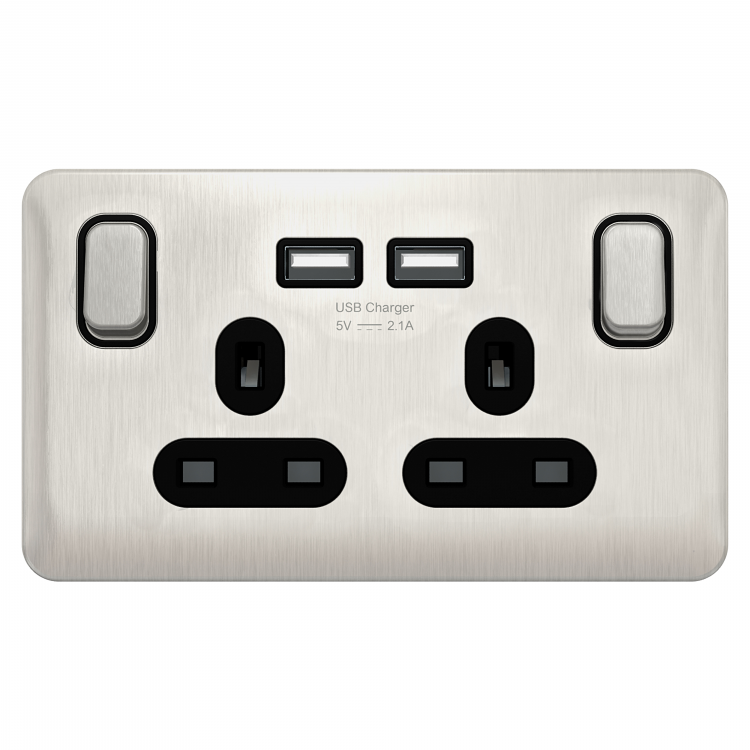

Image is for illustrative purposes only

Schneider Electric GGBL30202USBABSSS Lisse 2G Switched 2 USB chargers Stainless Steel

Part: GGBL30202USBABSSS
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Lisse - Switched Socket - 2 gang - 13A SP 2USB Stainless Steel with Black insert.

  • Double switched socket 13A
  • Future proofed to cater for latest demands in technology
  • 7mm raised edge plate with rounded profile
  • Ideally suited for new construction and refurbishment projects requiring a smooth modern plate profile.
  • Removable screwless cover with a reliable clip-in system.
  • Gently rounded metal rocker to compliment the curved profile
  • Light grey back moulding for easier terminal identification
  • Cable markings to check wire length
  • Requires a 25mm back box

Nominal current :13A
Nominal voltage :250V
Mounting method :Flush mounted
Colour :Stainless steel
Model :British Standard
Number of units/gangs :2
Lockable :No
With hinged lid :No
Connection type :Screwed terminal
Surface protection :Untreated
With indicator lamp :No
With enhanced contact protection :Yes
Frequency :50 to 60Hz
With on/off switch :Yes
Label space/information surface :No
Eject-mechanism :No
Material qualifier :Stainless steel
Rotated central insert :No
Over voltage-/surge protection :No
Fault current protection :No
Special power supply :No special power supply
Material :Metal
Type of fastening :Mounting with screw
Imprint/indication :Other
Transparent :No
Surface finish :Matt
With miniature fuse :No
With loop through function :No
Degree of protection (IP rating) :IP20
Width of device :148mm
Height of device :87mm
Depth of device :31mm
Number of switchable socket outlets :2
With function lighting :No
With orientation lighting :No
Number of module spaces (modular system) :0
Number of active contacts (round) :0
Number of active contacts (rectangular) :3
Antibacterial treatment :No
