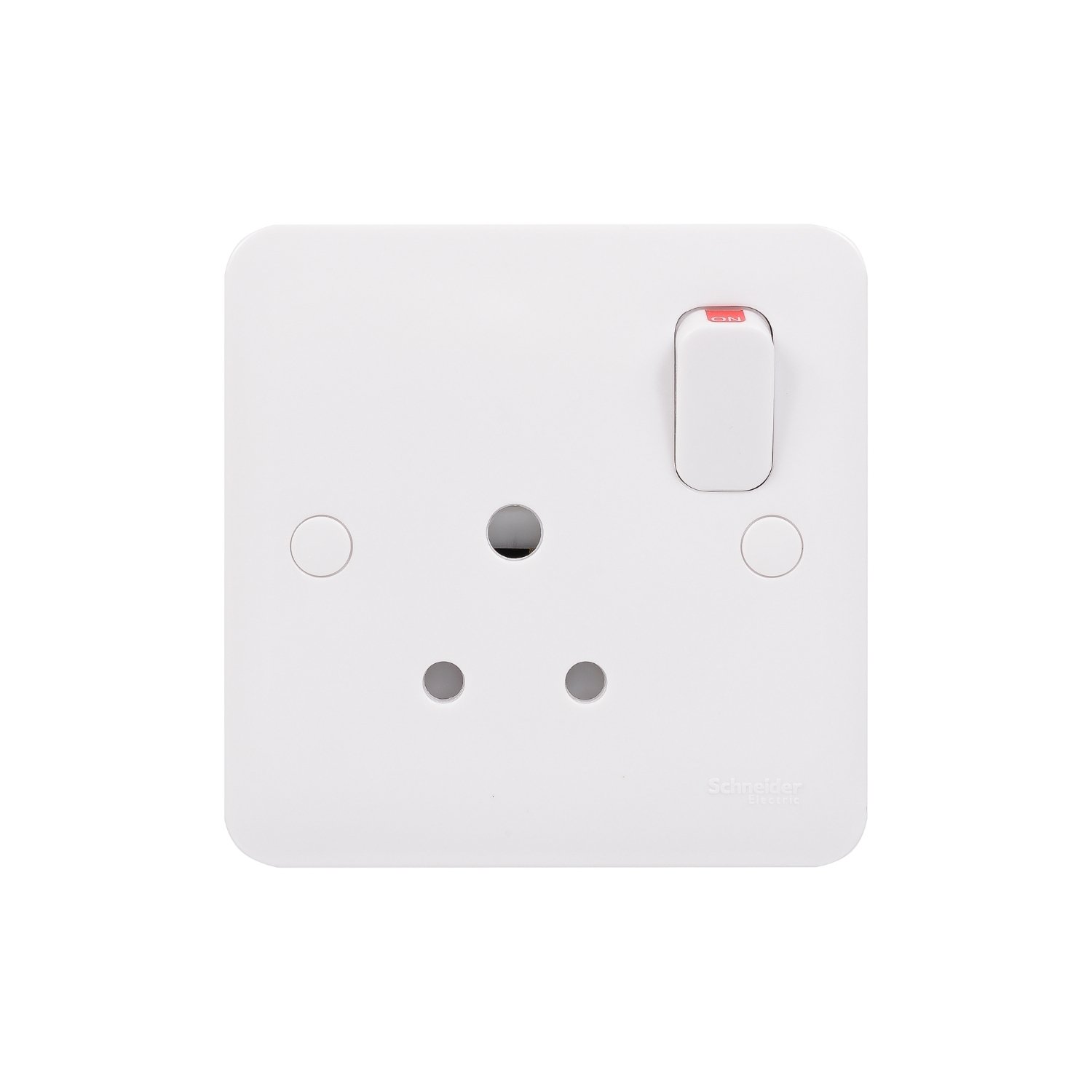

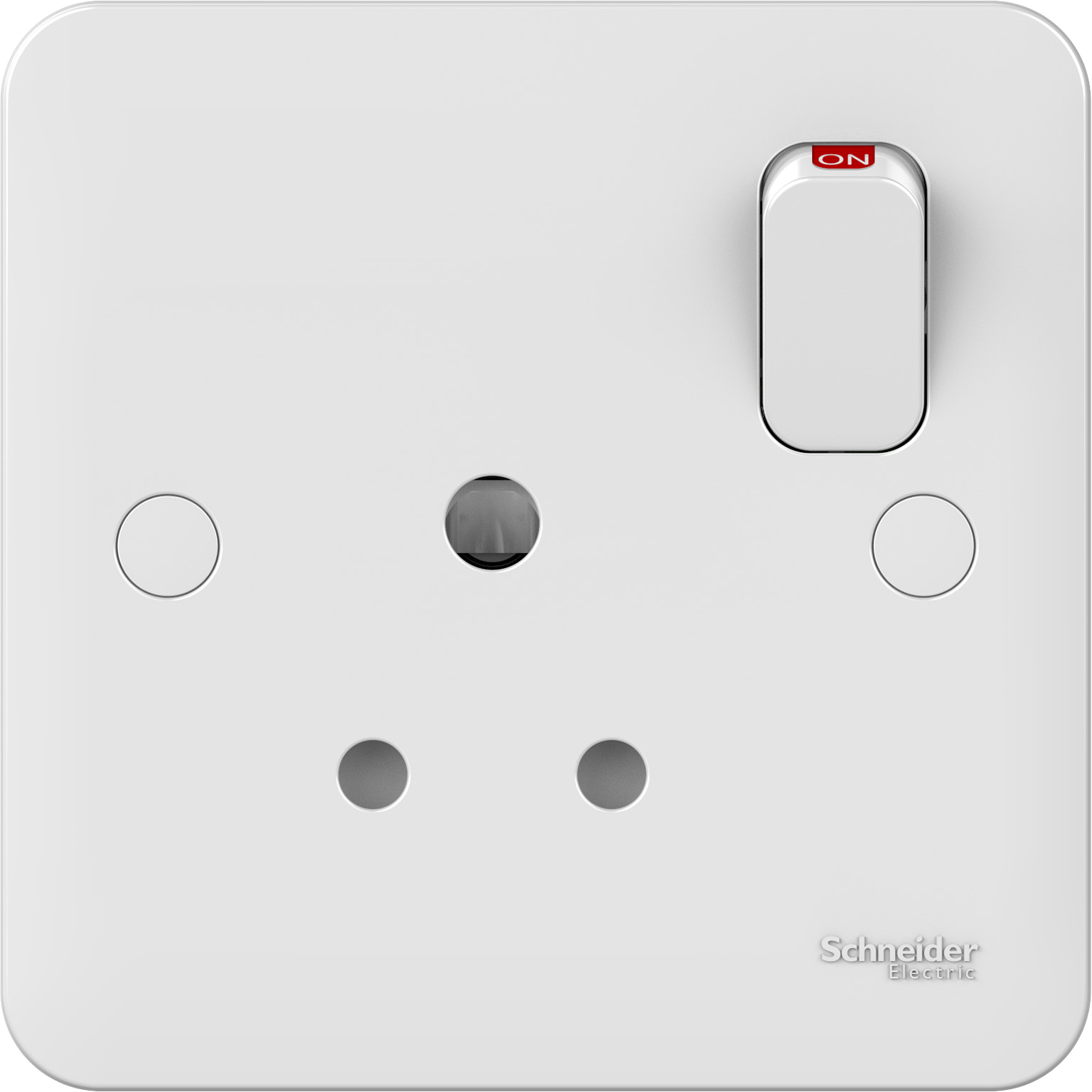

Schneider Electric GGBL3081 Lisse 1G 5A Round Pin Sw Socket White
Part: GGBL3081
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Lisse White moulded - socket-outlet - 5 A - 1 gang - matt white - set of 1.
- Round pin socket outlet with a raised rounded profile
- Concealed Fittings
- Durable Anti-Microbial Urea Construction
- Optional LED indicator
- Raised rounded profile
- Angled terminals for easier access
- The 7mm raised edge profile offers easy installation
- Concealed fittings
| Nominal voltage : | 230V |
| Mounting method : | Surface mounted |
| Method of operation : | Rocker |
| Colour : | White |
| Halogen free : | Yes |
| Surface protection : | Untreated |
| Rated current : | 5A |
| Material qualifier : | Urea formaldehyde |
| Number of poles : | 1 |
| Material : | Plastic |
| Type of fastening : | Mounting with screw |
| Mounting direction : | Horizontal and vertical |
| With lighting : | No |
| Nominal current socket outlet : | 5A |
| RAL-number (similar) : | 9003 |
| Transparent : | No |
| Surface finish : | Matt |
| Degree of protection (IP rating) : | IP20 |
| Width of device : | 87mm |
| Height of device : | 87mm |
| Depth of device : | 32mm |
| Equipped with 1 : | British Standard |
| Equipped with 2 : | Other |
| Number of socket outlets total : | 1 |
| Number of switchable socket outlets : | 1 |
