WALTHER 319306 Waterproof coupler 16A 3P 6h with cable gland

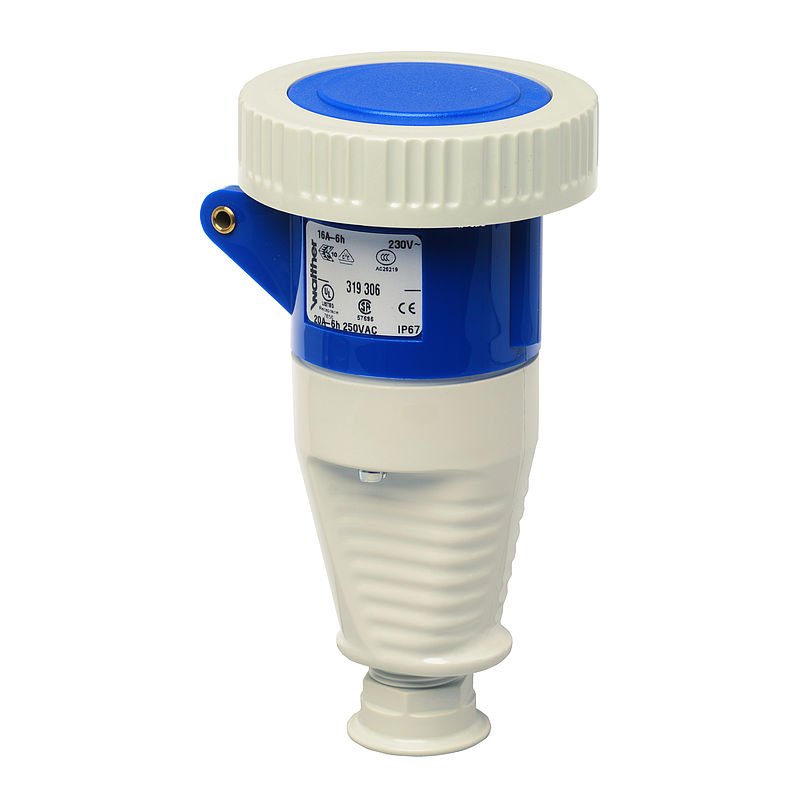

Image is for illustrative purposes only

WALTHER 319306 Waterproof coupler 16A 3P 6h with cable gland

Part: 319306
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

WALTHER Coupler 16A 3P 230V 6h IP67 made from PA6 material with screw terminal with cable gland and an injected 2K seal Increased safety due to two contact screws.

IEC-amperage :16 A
Amperage acc. UL/CSA (for UL-version) :20 A
Number of poles :3
Voltage acc. EN 60309-2 :230 V (50+60 Hz) blue
Clock hour position :6 h
Identification colourBlue:
RAL-number :5002
Degree of protection (IP) :IP67
Connection system :Screwed terminal
Angle of plug :Straight
Cable entry :Swivel
Material :Plastic
