WISKA 10060974
Image is for illustrative purposes only

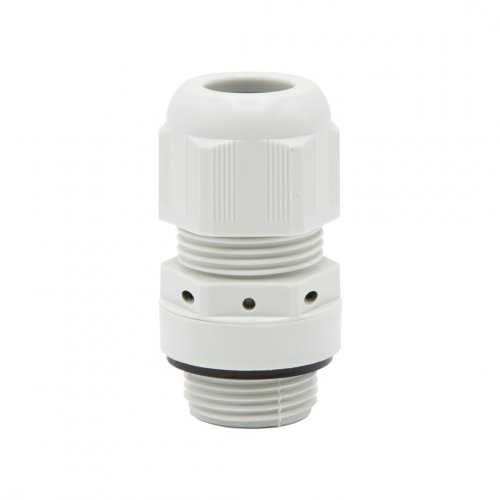

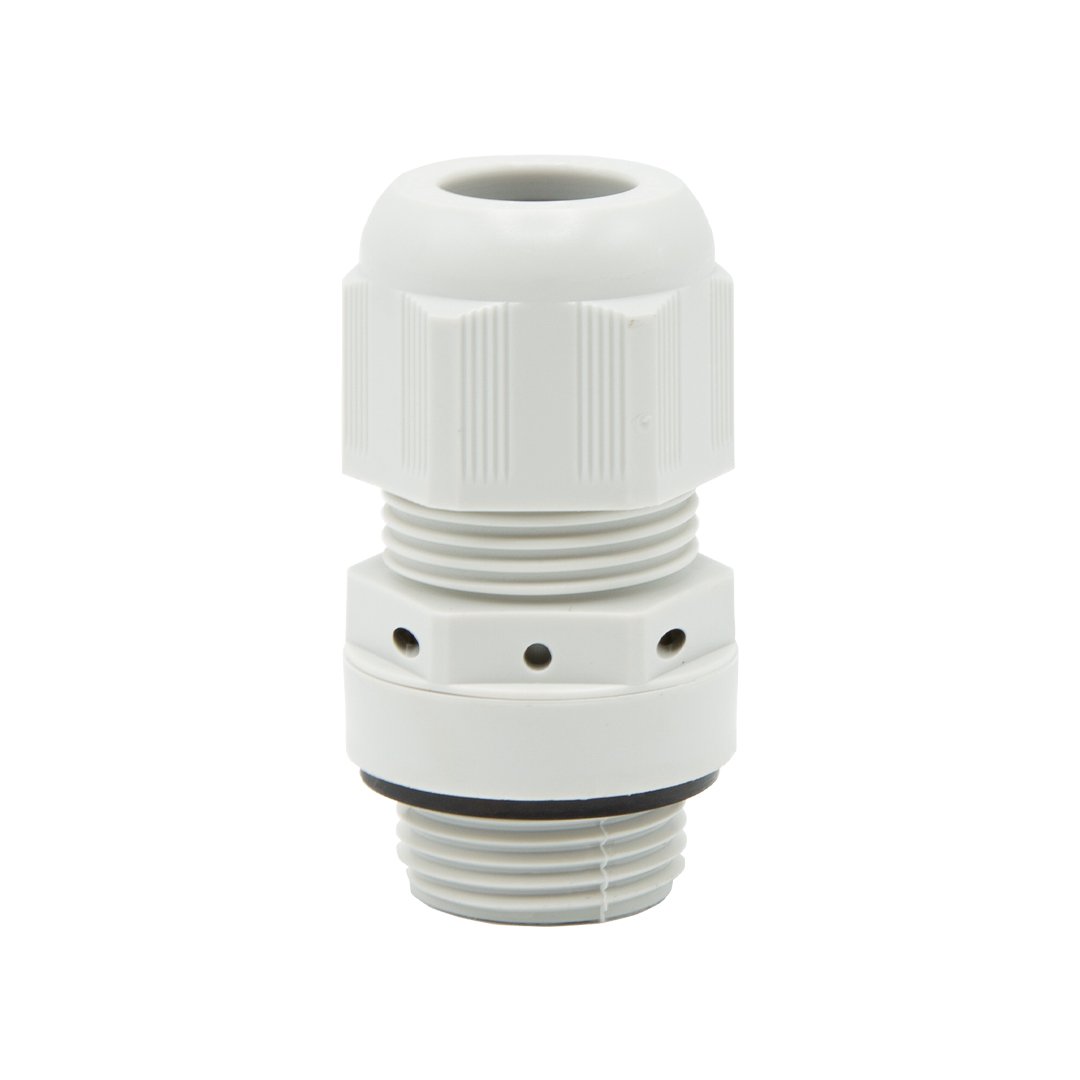

WISKA 10060974 SPRINT M20 Polyamide VentGLAND Light Grey

Part: 10060974
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Our IP68/IP69 VentGLAND and VentPLUG eliminates the build-up of condensation in your enclosure or installation. Air can flow freely through a high performance ePTFE membrane. The same membrane prevents moisture, dirt and other contaminants passing through preventing the build of condensation. Available in M16, M20, M25, M32, M50 and M63 sizes in either polyamide, brass nickel-plated or stainless-steel.

  • Protection Rating - IP68 (5 bar 30 mins) / IP69
  • Polyamide cable gland / gasket EPDM, membrane ePTFE / Halogen free / UV resistant
  • M20
  • Clamping range: 6 - 13mm
  • Colour: Light Grey
  • Protection against condensation
  • Ideal for roughest conditions
  • Protection against contaminants
  • Effective pressure equalisation
  • High operational safety

Colour :Black
Model :Straight
Halogen free :Yes
Shock resistant :Yes
RAL number :9005
Surface protection :Untreated
Wrench width :24mm
Thread length :10mm
Bend radius protection/trumpet flare :No
With strain relief :Yes
Screened :No
EMC-version :No
Glass fibre reinforced :No
Material qualifier :Polyamide (PA)
Working temperature :-40 to 100°C
Thread type :Metric
Material :Plastic
Pitch thread :1.5mm
Explosion-tested version :No
Flat cable sealing :No
Multi cable sealing :No
Locknut included :No
Hexagon angular dimension :27mm
Separable (split) screw gland :No
Suitable for cable outer diameter :6 to 13mm
Degree of protection (IP rating) :IP68
For ATEX classification, Ex-zone gas :None
Nominal thread size metric/PG :25
For ATEX classification, Ex-zone dust :None
For armoured cable :No
Snapping in opening :No
