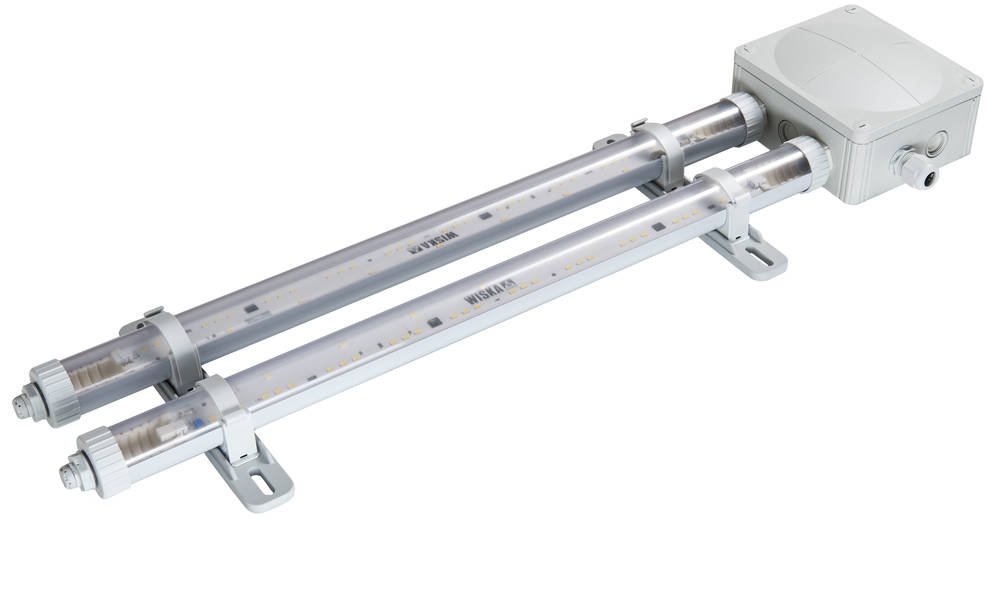

WISKA 10105089 (4000-2x26-230-2-CA) LED luminaire, double, 2x 26W, 230V, Connection box 1210

Part: 10105089

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Maintenance-free - No driver and only a few components reduce maintenance costs to a minimum
Time-saving installation - Assembly and installation in just a few steps, available in all standard installation dimensions
Robust - Non-corrosive, withstands vibrations, salt water and UV resistant, watertight
Connection box COMBI MAR 1210
2 cable glands ESKV 20 Plus included
VentPLUG mounted in end cap
Mounting via 2 mounting rails

Material :	Polycarbonate
Globe colour :	Clear
Wattage :	52 W
Power^ :	2 x 26 W
Voltage :	230 V
Type of Voltage :	AC
Protection class :	IP67
Frequence :	50/60 Hz
Connection :	connection box 1210
Temp. range max :	55 °C
Temp. range min :	-30 °C
Operational areas :	Engine room, Cargo hold, Outdoor
Ų cable diameter min :	7,5 mm
Colour rendering index :	CRI > 80
Ų cable diameter max :	14 mm
Lightsource :	LED
Lightsource incl. :	Yes
Colour temperature :	5600 K
Rated Lifetime :	L70/B50 @Ta +35 °C
System Lifetime :	100000 h
Mounting :	Ceiling, Wall, Surface mounting
Colour :	RAL 7035

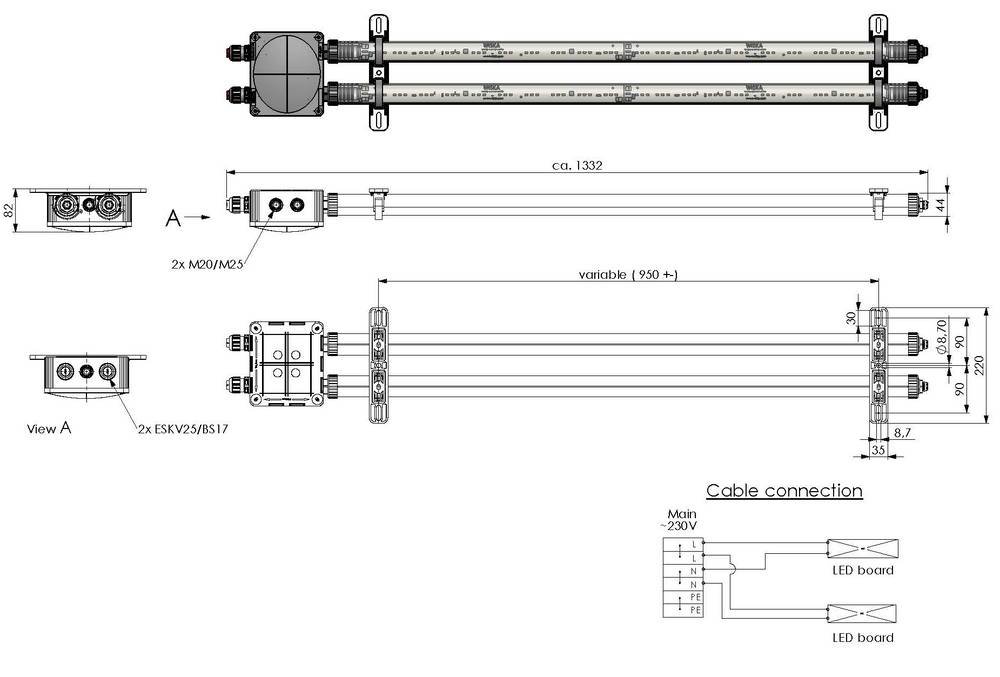

External dimensions LxWxH :	1292x220x83mm
Approval :	RMRS, DNV-GL
Weight :	1,2 kg
