WISKA 10105522 (4000-1x13-230-4-S-SR2) LED luminaire, single, 1x 13W, 230V, plug-cable-socket

Part: 10105522
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Maintenance-free - No driver and only a few components reduce maintenance costs to a minimum
  • Time-saving installation - Assembly and installation in just a few steps, available in all standard installation dimensions
  • Robust - Non-corrosive, withstands vibrations, salt water and UV resistant, watertight
  • 0,5m connection cable 2x1,5mm²
  • with Wieland quick connector male/female
  • without through wiring
  • cable out diameter 13-18mm²
  • Breathing via VentGland mounted to end cap
  • Mounting via two clamps
  • Mounting via two clamps

Material :Polycarbonate
Globe colour :Clear
Wattage :13 W
Power^ :1 x 13 W
Voltage :230 V
Type of Voltage :AC
Protection class :IP66 / IP68 (0,2 bar 30min)
Frequence :50/60 Hz
Connection :plug-cable-socket
Temp. range max :55 °C
Temp. range min :-30 °C
Operational areas :Engine room, Cargo hold, Outdoor
Ø cable diameter min :13 mm
Colour rendering index :CRI > 80
Ø cable diameter max :18 mm
Lightsource :LED
Lightsource incl. :Yes
Colour temperature :5600 K
Rated Lifetime :L70/B50 @Ta +35 °C
System Lifetime :100000 h
Mounting :Ceiling, Wall, Surface mounting
Colour :RAL 7035

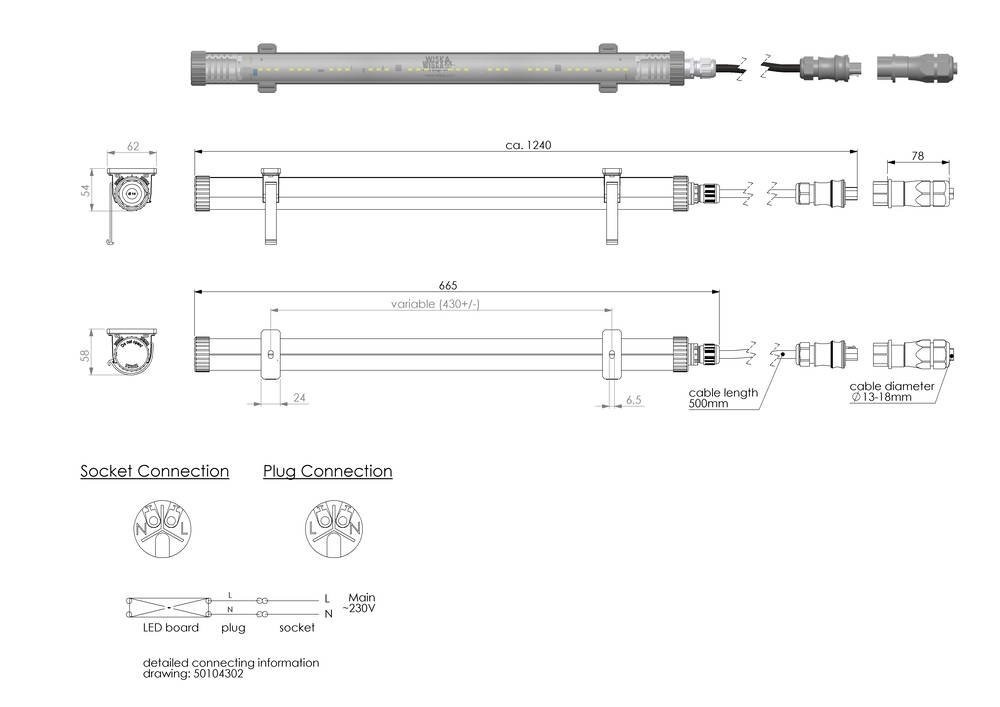

External dimensions LxWxH :694x62x54mm
Approval :DNV-GL, RMRS
Weight :0,64 kg
