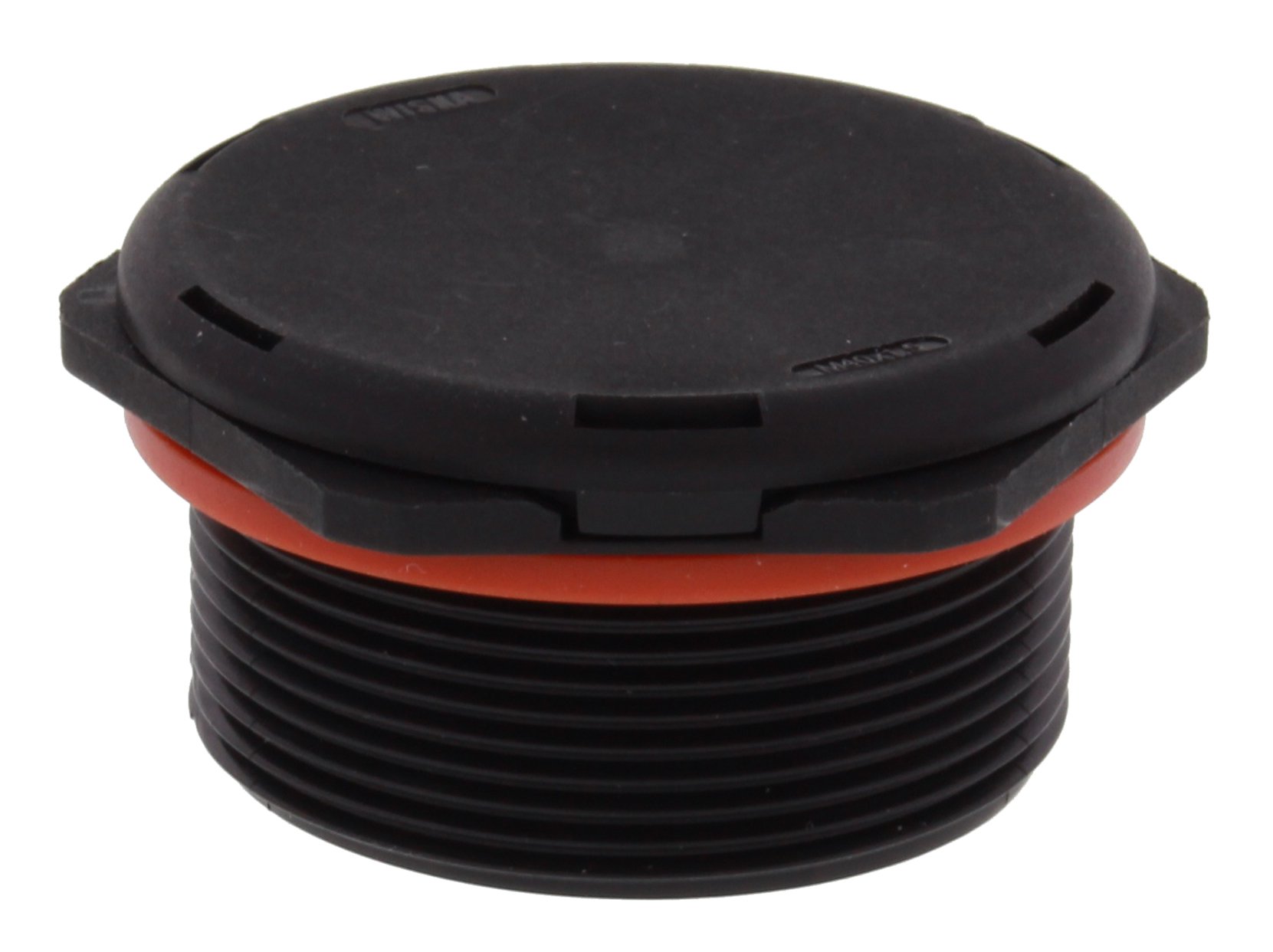

Image is for illustrative purposes only

WISKA 10106622 M40 Polyamide VentPLUG High Air Flow Long Thread Black

Part: 10106622
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

The VentPLUG is used when a cable gland with an additional pressure equalisation unit is required to vent the enclosure. Airflow rate for these article at 70mbar: 1650l/h.

  • Ventilation connection
  • Breathing plug
  • Ventilation
  • Pressure compensation gland
  • Protect against condensation
  • Ventplug
  • Venting solution
  • Temp Range -40 °C - 100 °C
  • IP68 / IP69
  • Equalisation Unit, Long thread, high air flow

Colour :Black
Model :Straight
Halogen free :Yes
Shock resistant :Yes
RAL number :9005
Surface protection :Untreated
Wrench width :46mm
Thread length :18mm
Bend radius protection/trumpet flare :No
With strain relief :No
Screened :No
EMC-version :No
Glass fibre reinforced :No
Material qualifier :Polyamide (PA)
Working temperature :-40 to 100°C
Thread type :Metric
Material :Plastic
Pitch thread :1.5mm
Explosion-tested version :No
Flat cable sealing :No
Multi cable sealing :No
Locknut included :No
Hexagon angular dimension :51mm
Separable (split) screw gland :No
Suitable for cable outer diameter :0mm
Degree of protection (IP rating) :IP68
For ATEX classification, Ex-zone gas :None
Nominal thread size metric/PG :40
For ATEX classification, Ex-zone dust :None
For armoured cable :No
Snapping in opening :No
