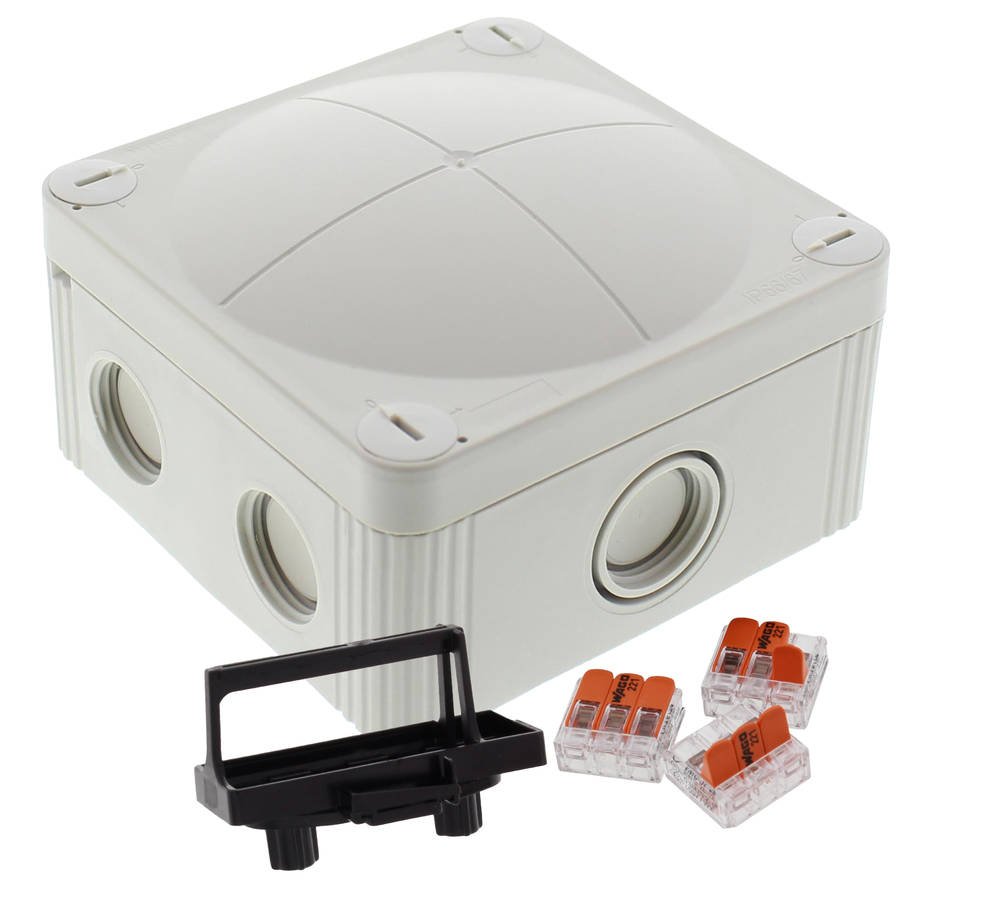

WISKA 10109674 COMBI 407 LG / 3-221-413 junction box, 95 x 95 x 60mm, grey, plastic, with Wago terminals
Image is for illustrative purposes only
WISKA 10109674 COMBI 407 LG / 3-221-413 junction box, 95 x 95 x 60mm, grey, plastic, with Wago terminals
WISKA 10109674 COMBI 407 LG / 3-221-413 junction box, 95 x 95 x 60mm, grey, plastic, with Wago terminals

WISKA 10109674 COMBI 407 LG / 3-221-413 junction box, 95 x 95 x 60mm, grey, plastic, with Wago terminals

Part: 10109674
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
  • 2 membrane cable entries through rear
  • 4 captive cover screws
  • including mounting clip

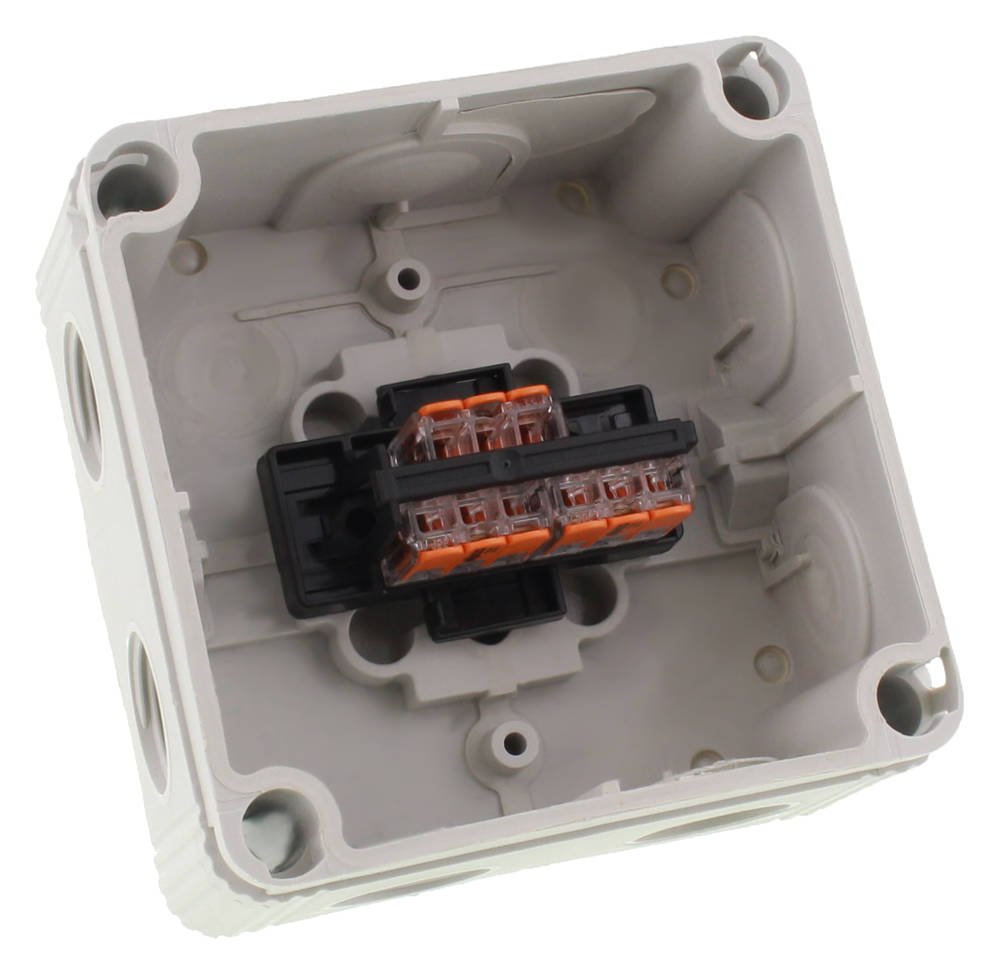

  • including terminal carrier on quick mounting plate mounted with
  • 3x WAGO 221-413

Material :Polypropylene
Material sealing gasket :TPE
Temp. range min :-30 °C
Temp. range max :100 °C
Temperatures during install. :-5 °C - 60 °C
Protection class :IP66 / IP67
Glow wire test :750 °C
Voltage :450 V
Rated current / A (Terminal) :32 A
Rated cross section :4 mm²
Terminals/poles :4 mm²
Fixing :4 internal openings
Ø cable diameter min :3 mm
Ø cable diameter max :12 mm
External dimensions LxWxH :95 x 95 x 60mm
Type of cable gland :M 20 x 1,5, M 25 x 1,5
Product Color :RAL 7035
Order no.  :10109674
Type :COMBI 407 LG / 3-221-413

Make an enquiry

...
