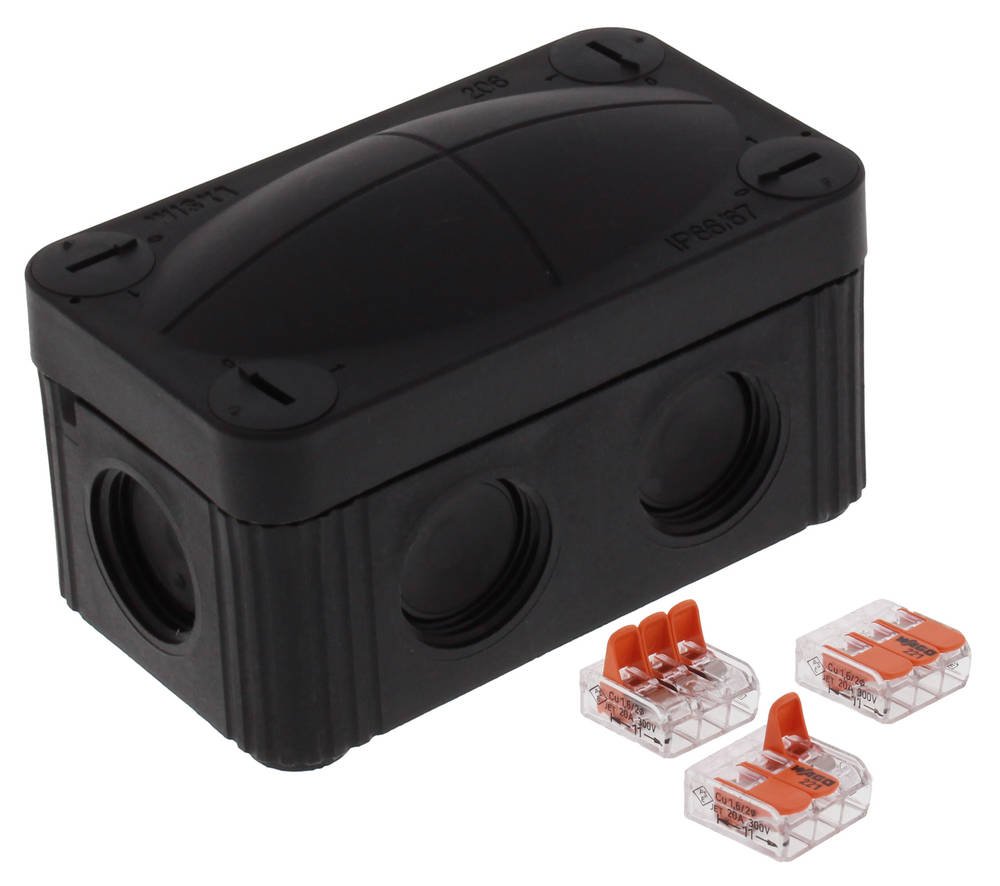

WISKA 10109900 COMBI 206 BK / 3xWAGO 221-413 junction box, 85 x 49 x 51mm, black, plastic, with Wago terminals
Image is for illustrative purposes only
WISKA 10109900 COMBI 206 BK / 3xWAGO 221-413 junction box, 85 x 49 x 51mm, black, plastic, with Wago terminals
Dimensions
Dimensions

WISKA 10109900 COMBI 206 BK / 3xWAGO 221-413 junction box, 85 x 49 x 51mm, black, plastic, with Wago terminals

Part: 10109900
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 6 M20 threaded membrane entries
  • 2 membrane cable entries through rear
  • 4 captive cover screws
  • Including 3x WAGO 221-413 enclosed loose
  • Fixing with 4 internal openings outside of the sealing area

Material :Polypropylene
Material sealing gasket :TPE
Temp. range min :-30 °C
Temp. range max :100 °C
Temperatures during install. :-5 °C - 60 °C
Protection class :IP66 / IP67
Glow wire test :750 °C
Voltage :400 V
Rated cross section :1,5 mm²
Terminals/poles :4 mm²
Fixing :4 internal openings
Ø cable diameter min :3 mm
Ø cable diameter max :12 mm
External dimensions LxWxH :85 x 49 x 51mm
Product Color :RAL 9005
Order no. RAL 9005 :10109900
Type : COMBI 206 BK / 3xWAGO 221-413:
