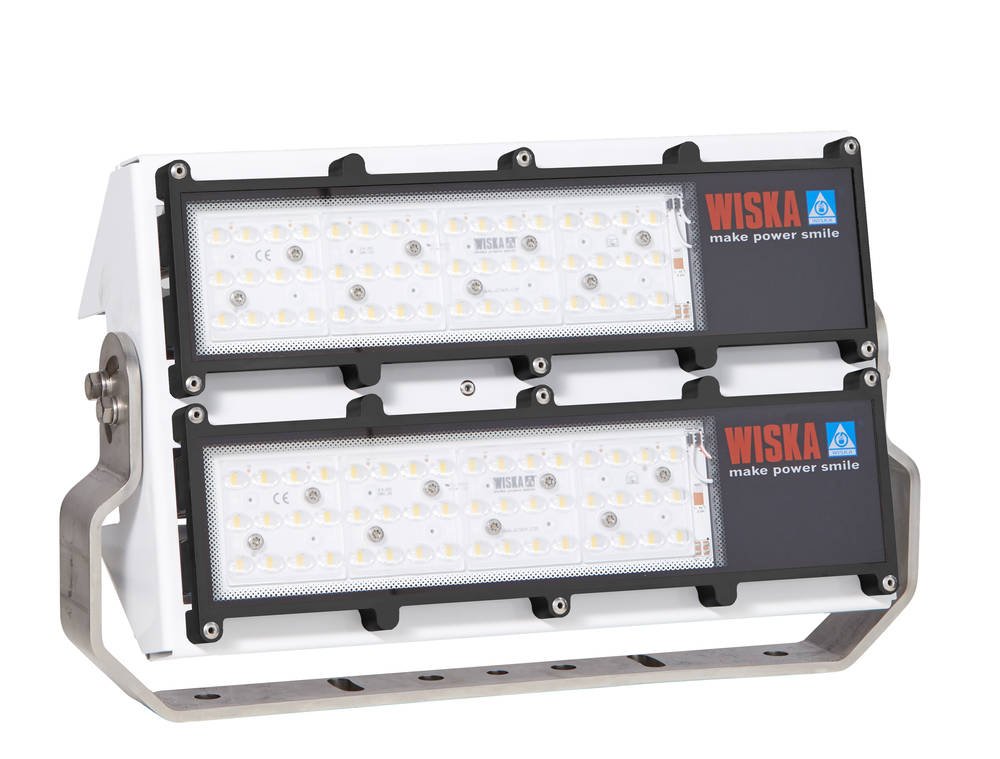

WISKA 10110350 (5000-2x40W-MV-NB-FN-1AA) LED Floodlight 5000, 2 x 40W, 100-240V, narrow beam

Part: 10110350
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • narrow beam
  • seawater resistant module housing
  • made of special heat conducting plastic
  • stainless steel frame, back cover and mounting bracket, back cover white powder coated
  • connection box COMBI 407
  • 1 cable gland ESKV25 for cable 9-17mm in diameter
  • 2x3-pole terminal max. 4mm²

Material :Plastic, Stainless steel
Wattage :80 W
Power^ :2 x 40 W
Voltage :230 V
Voltage min. (V) :100 V
Voltage max. (V) :240 V
Type of Voltage :AC
Frequence :50/60 Hz
Protection class :IP66 / IP67
Temp. range min :-30 °C
Temp. range max :55 °C
Operational areas :Indoor / Outdoor
Mounting :Upside, Ceiling, Wall
Reflector :Narrow beam
Lightsource :LED
Lightsource incl. :Yes
Luminous flux :8000 Im
Colour temperature :5600 K
Colour rendering index :>= 80
Rated Lifetime :L70/B10 @Ta +45 °C
System Lifetime :120000 h
Type of cable gland :ESKV 25 / 9-17mm
Material cable gland :Polyamide
Ø cable diameter min :9 mm
Ø cable diameter max :17 mm

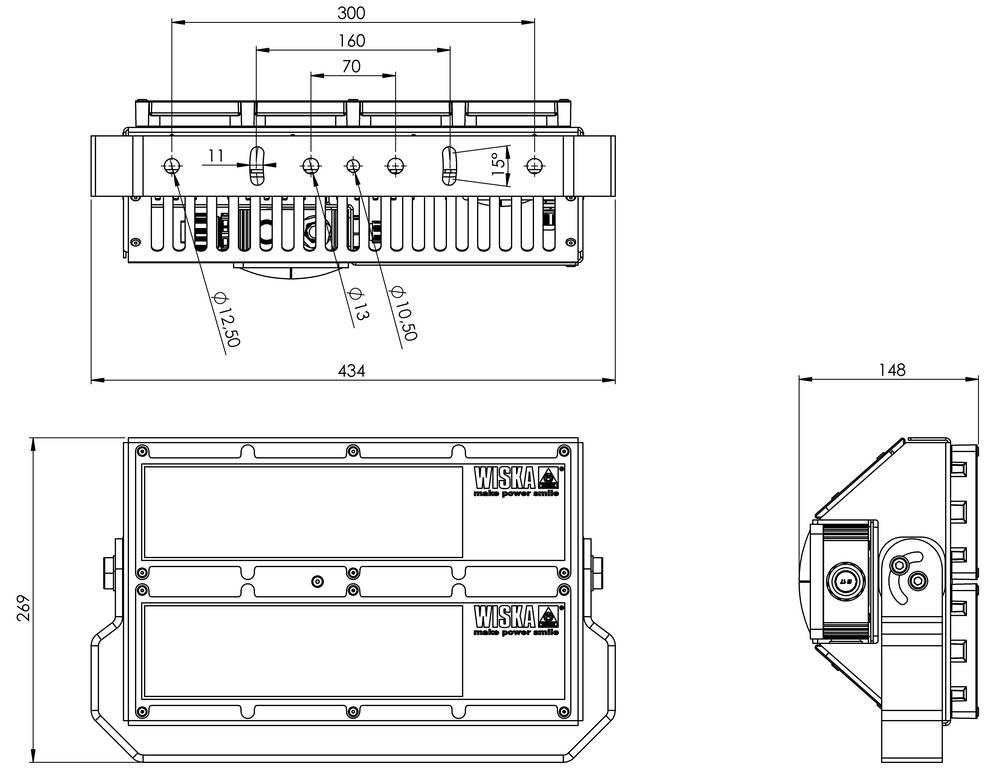

External dimensions LxWxH :434x269x148mm
Weight :9,05 kg
