WISKA 10110459
Image is for illustrative purposes only
WISKA 10110459
WISKA 10110459
WISKA 10110459
WISKA 10110459

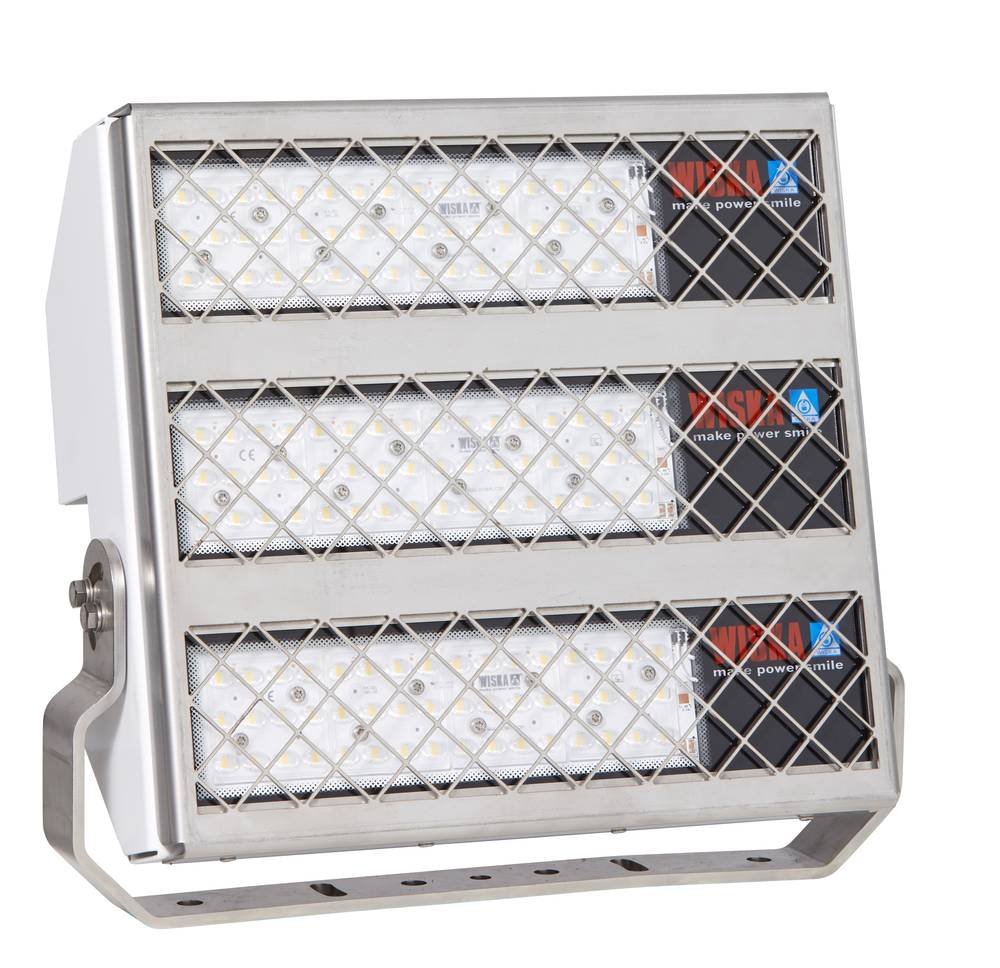

WISKA 10110459 (5000-3x40W-MV-WB-FN-1AA-G02) LED Floodlight 5000, 3 x 40W, 100-240V, wide beam, Guard

Part: 10110459
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • wide beam, Guard
  • seawater resistant module housing
  • made of special heat conducting plastic

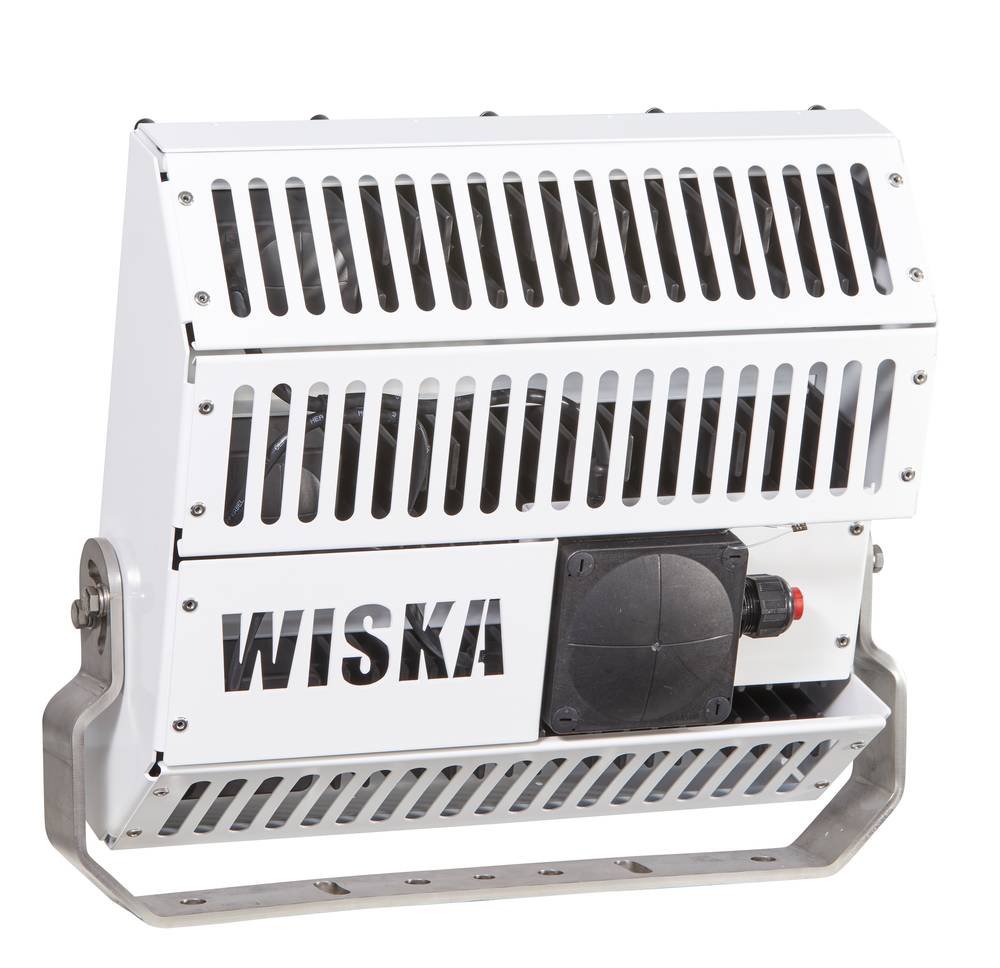

  • stainless steel frame, back cover and mounting bracket, back cover white powder coated
  • connection box COMBI 407
  • 1 cable gland ESKV25 for cable 9-17mm in diameter
  • 2x3-pole terminal max. 4mm²
  • mounted hit grid

Material :Stainless steel, Plastic
Wattage :120 W
Power^ :3 x 40 W
Voltage :230 V
Voltage min. (V) :100 V
Voltage max. (V) :240 V
Type of Voltage :AC
Frequence :50/60 Hz
Protection class :IP66 / IP67
Temp. range min :-30 °C
Temp. range max :55 °C
Operational areas :Indoor / Outdoor
Mounting :Wall, Upside, Ceiling
Reflector :Wide beam
Lightsource :LED
Lightsource incl. :Yes
Luminous flux :12000 Im
Colour temperature :5600 K
Colour rendering index :>= 80
Rated Lifetime :L70/B10 @Ta +45 °C
System Lifetime :120000 h
Type of cable gland :ESKV 25 / 9-17mm
Material cable gland :Polyamide
Ø cable diameter min :9 mm
Ø cable diameter max :17 mm

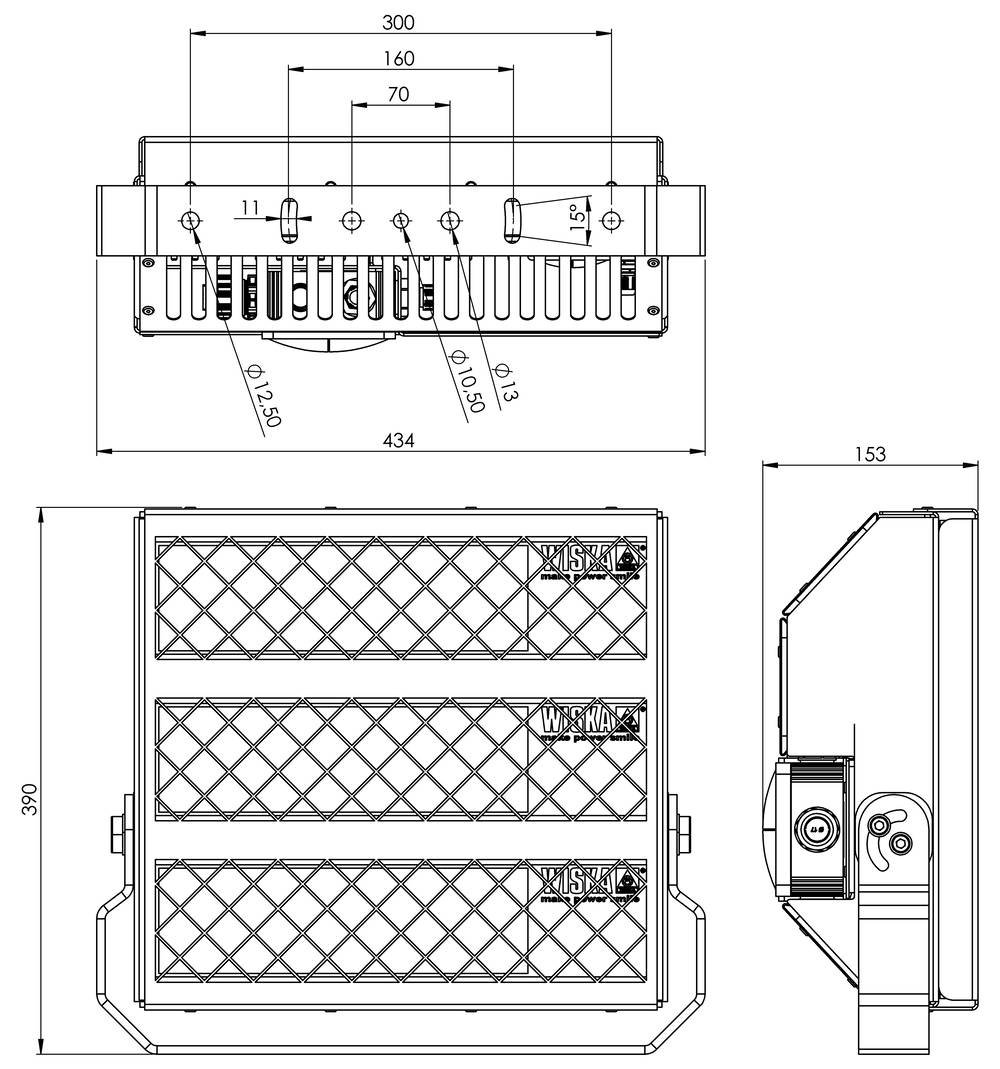

External dimensions LxWxH :434x390x153mm
Equipment :Guard
Weight :14 kg
