FuseBox MT06B251
Image is for illustrative purposes only

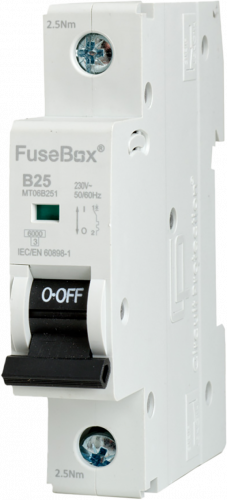

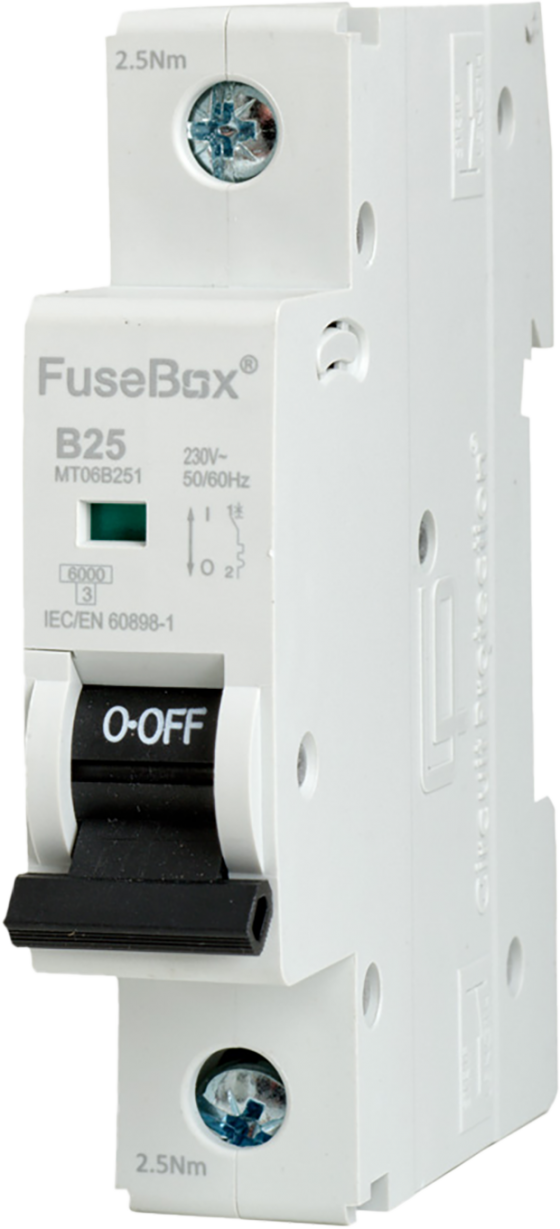

FuseBox MT06B251 25A B CURVE MCB 6kA 1P

Part: MT06B251
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Miniature cicuit breaker suitable for use in FuseBox consumer units.

Standard :IEC/EN 60898-1
Number of poles :1
Rated voltage (Un/AC) :230V
Frequency :50/60
Rated breaking capacity (Icn) :6000A
Rated current (In) :25A
Tripping characteristics :B CURVE 3-5In
Mechanical endurance :10000
Protection degree :IP20
Maximum terminal capacity :16mm2
Recommended tightening torque :2.5Nm
Tripping type :Thermal magnetic
Mounting :35mm din rail
Material :PA6 (Nylon 6)
Weight (1pc) kg :0.12
