FuseBox RTA801002

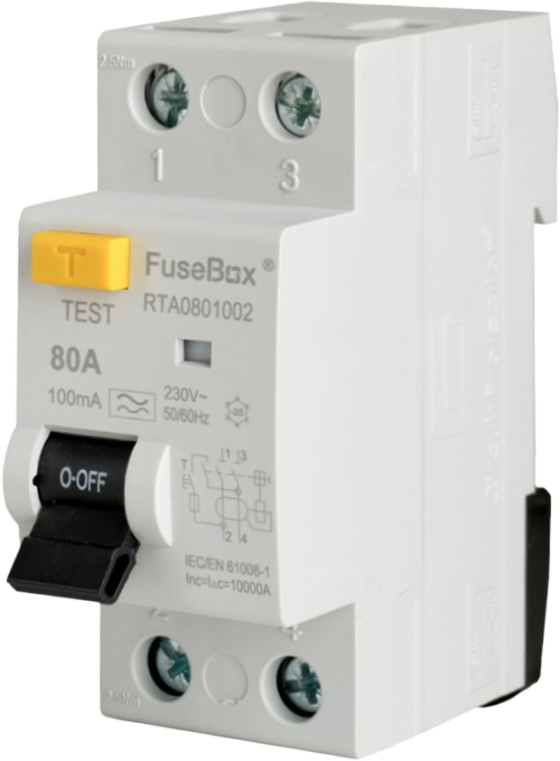

Image is for illustrative purposes only

FuseBox RTA801002 TYPE A 80A 100mA 2P RCD

Part: RTA801002
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Standard :IEC/EN 61009-1
Number of poles :2P
Rated voltage (Un/AC) :230V
Frequency :50/60
Rated breaking capacity (Icn) :6000A
Rated current (In) :80A
Residual current characteristics :TYPE A (AC AND PULSATING DC UP TO 6mA) , TYPE S (TIME DELAYED)
Mechanical endurance :10000
Protection degree :IP20
Maximum terminal capacity :25mm˛ (UP TO 80A) / 35mm˛ (100A)
Recommended tightening torque :Poles are not polarity sensitive (i.e. Neutral can be connected on the LHS and Line on RHS or vice versa). RCDs can be connected with the LOAD to the top or the bottom.
Mounting :35mm din rail
Material :PA6 (Nylon 6)
Weight (1pc) kg :0.23
