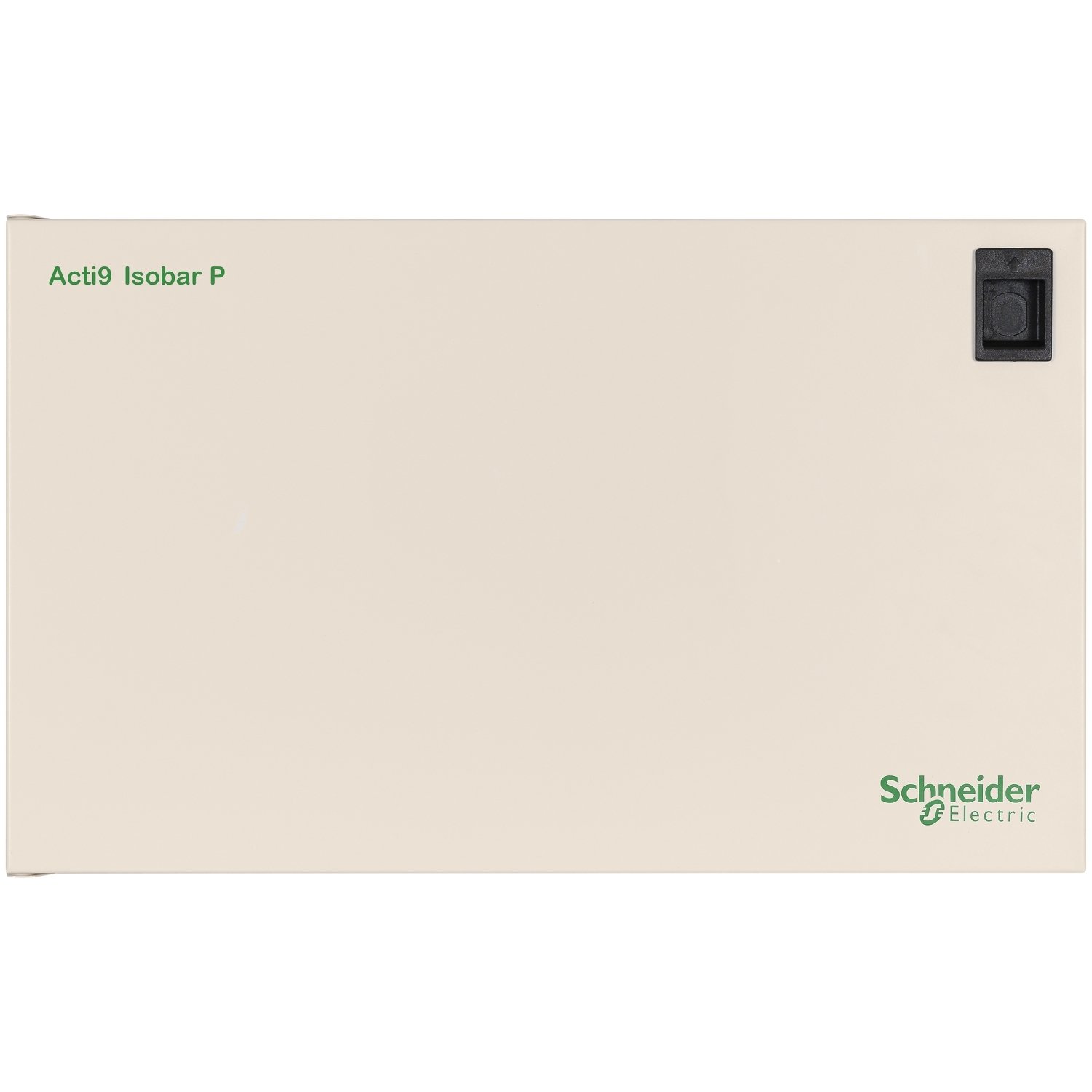

Schneider Electric SEA9APN1432MS A9 Isobar P 14+16way SP+N Din distribution board

Part: SEA9APN1432MS
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Acti9 Isobar P A - din multi service distribution board - 14 way +16 ways SP+N.

  • Plug-on neutral
  • Ease of installation
  • IP20 internal conforming to BS EN 60529
  • IP3x external conforming to BS EN 60529
  • ambient air temperature for operation between -35…70 °C
  • IK05 degree of protection
  • Powder Painted Steel with Epoxy Treatment
  • Green Premium Product

Mounting method :Surface mounted
Colour :Other
Width :417mm
Height :530mm
Depth :117mm
RAL number :9001
Number of rows :2
Type of covering :Cover
Extension possible :Yes
With DIN-rail :Yes
Housing material :Steel
Width in number of modular spacings :14
Type of closure :Other
Degree of protection (IP rating) :IP3X
Transparent cover/door :No
With lock :Yes
Cover model :Closed
