WISKA 10066413
Image is for illustrative purposes only

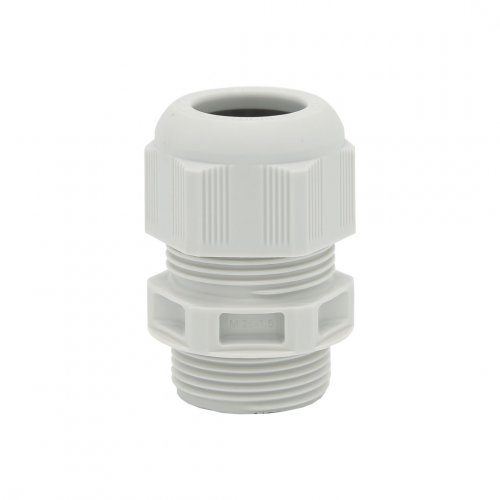

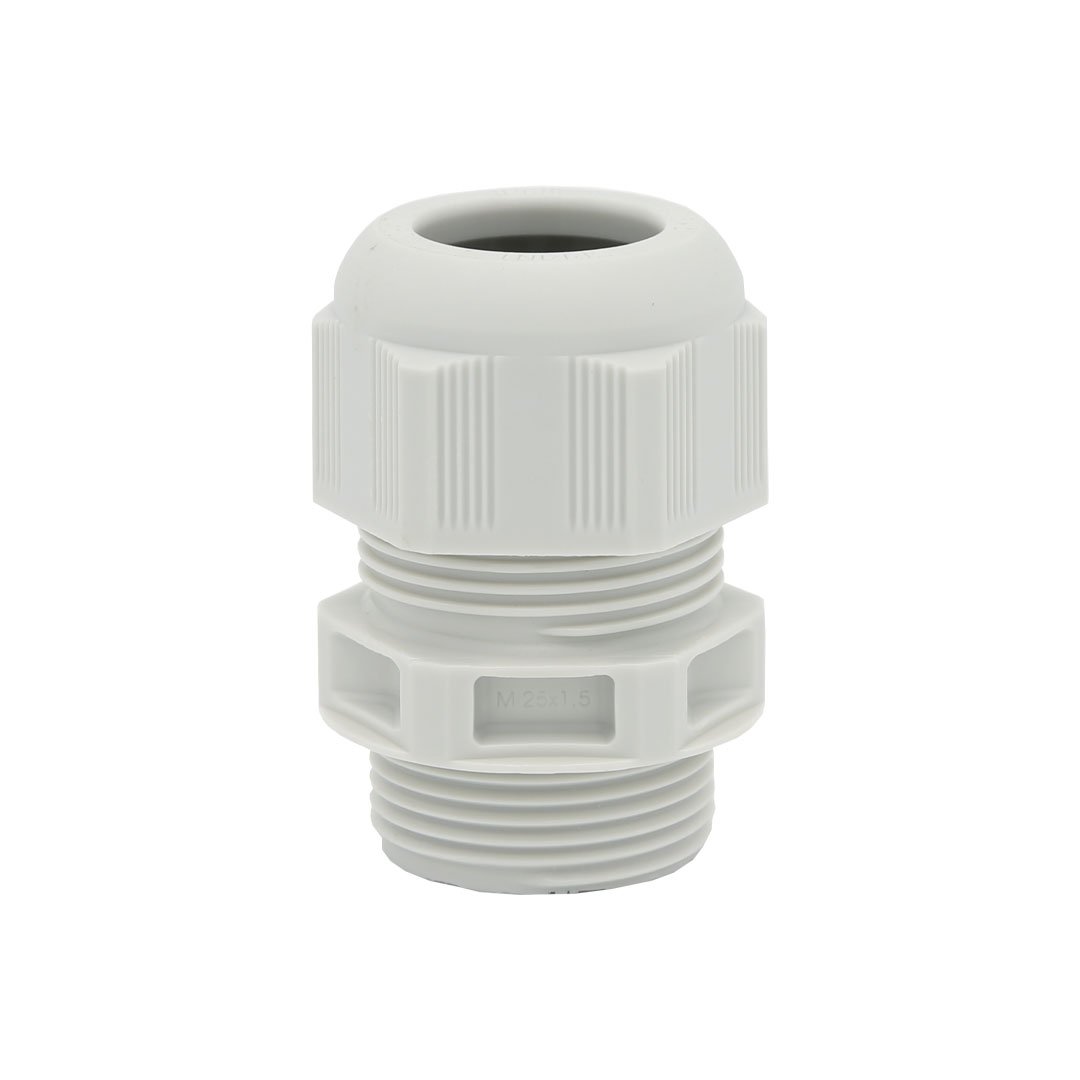

WISKA 10066413 ESKV 25 LG SPRINT M25 Polyamide Cable Gland Light Grey

Part: 10066413
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

SPRINTŪ cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Optimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing in sizes M12 to M32 by injection-moulded sealing lip, sizes M40 to M63 with connection thread sealing ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut. The SPRINTŪ system offers a comprehensive selection of accessories for special applications.

  • Protection Rating - IP68 (5 bar 30 mins) / IP69
  • M25
  • Material - 100% polyamide
  • Halogen Free / UV Resistant
  • Clamping range: 9 - 17mm
  • Vibration Proof
  • No Gasket
  • Colour: Light Grey

Model :Straight
Halogen free :Yes
Shock resistant :Yes
RAL number :7035
Surface protection :Untreated
Wrench width :29mm
Thread length :10mm
Bend radius protection/trumpet flare :No
With strain relief :Yes
Screened :No
EMC-version :No
Glass fibre reinforced :No
Type of sealing :Sealing ring
Material qualifier :Polyamide (PA)
Working temperature :-40 to 100°C
Thread type :Metric
Material :Plastic
Pitch thread :1.5mm
Explosion-tested version :No
Flat cable sealing :No
Multi cable sealing :No
Locknut included :No
Hexagon angular dimension :32mm
Separable (split) screw gland :No
Suitable for cable outer diameter :9 to 17mm
Degree of protection (IP rating) :IP68
For ATEX classification, Ex-zone gas :None
Nominal thread size metric/PG :25
For ATEX classification, Ex-zone dust :None
For armoured cable :No
Snapping in opening :No
